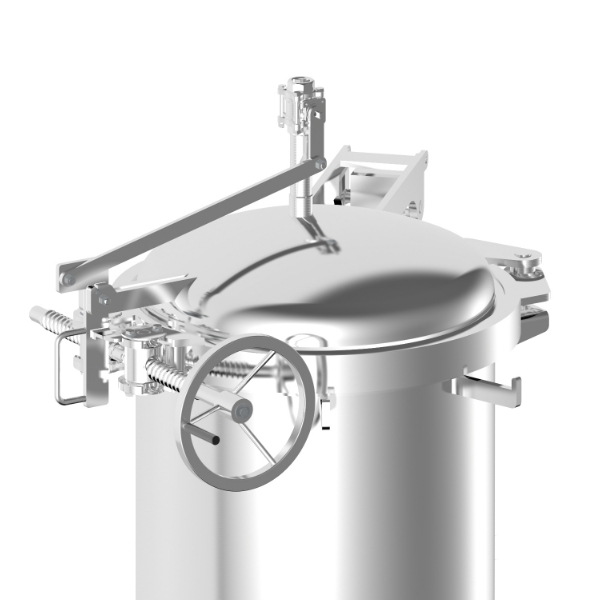

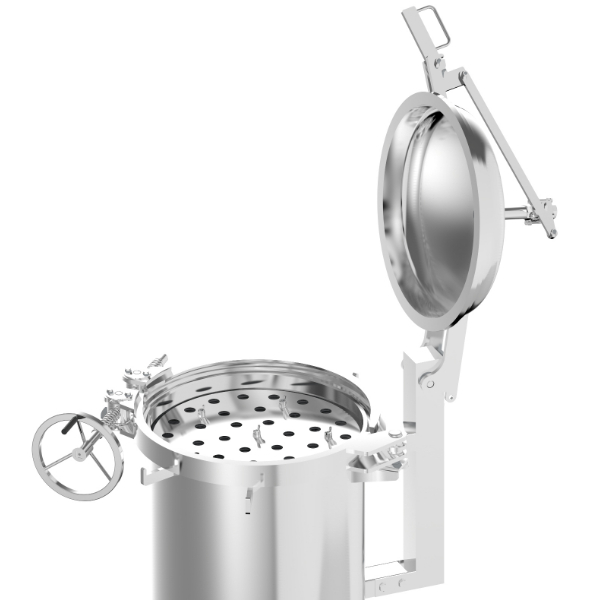

1. Easy-open spring lid type cover allows it opens in different angle without tool.
2. Quick- clamp closure without tool contributes to easy installation.
3. Well O-ring groove design improves sealing and prevents loosening.
4. One well design pedestal is available with both DOE and SOE cartridge specification.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| TRQ | 20 | 3 | 4 | F | 4 | 10K | E | EA |
| Model | No. of Rounds | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
TRQ |
13-82 |
3-30" 4-40" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
2-2" 221-2-1/2" 3-3” 4-4” 5-5" 6-6" |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc |
E-EPDM N-NBR V-VITON S-SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing S- Sand Blasting |

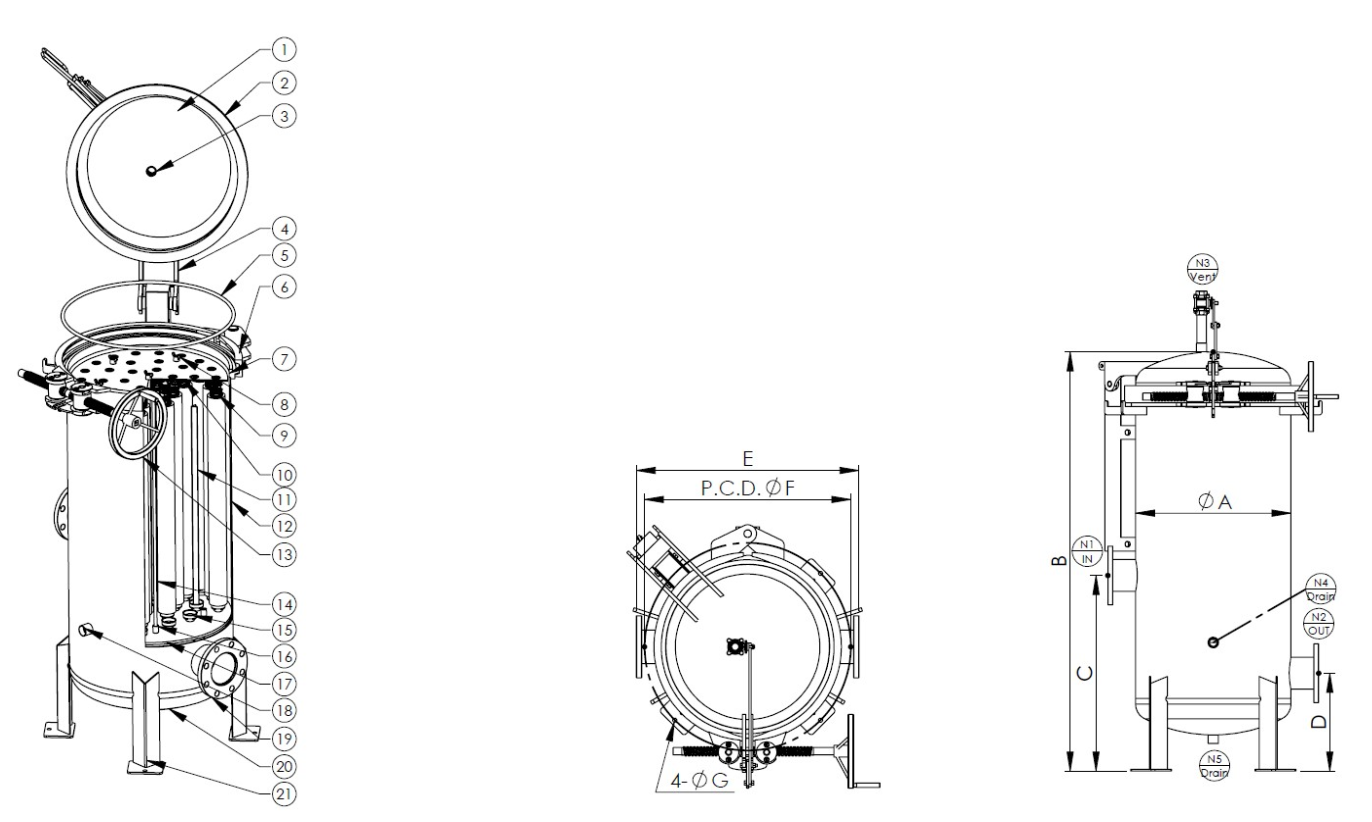

1. Top cover
2. Top cover flange
3. Vent
4. Raise cover units
5. O-ring
6. Clamp
7. Shell flange
8. Nut
9. Springs
10. Pressure plate
11. Cartridge post
12. Shell
13. Turntable
14. Threaded rod
15. Pedestal
16. Nut
17. Cartridge support plate
18. Drain
19. Inlet / Outlet
20. Bottom cover
21. Support leg
| Model | Length | N1/N2 |
N4/N5 |
A m/m | B m/m | C m/m | D m/m | E m/m | F (PCD) m/m | G m/m | M³/Hr | GPM |
| TRQ13~20 | 30" | 2"~4" | 1" | Ø406 | 1451 | 700 | 350 | 606 | Ø516 | Ø14 | 39~60 | 172~264 |
| TRQ13~20 | 40" | 2"~4" | 1" | Ø406 | 1701 | 700 | 350 | 606 | Ø516 | Ø14 | 52~80 | 229~352 |
| TRQ21~28 | 30" | 3"~4" | 1" | Ø508 | 1470 | 700 | 350 | 708 | Ø618 | Ø14 | 63~84 | 277~270 |
| TRQ21~28 | 40" | 3"~4" | 1" | Ø508 | 1720 | 700 | 350 | 708 | Ø618 | Ø14 | 84~112 | 370~493 |
| TRQ29~40 | 30" | 3"~4" | 1" | Ø560 | 1481 | 700 | 350 | 760 | Ø704 | Ø18 | 87~120 | 383~528 |
| TRQ29~40 | 40" | 3"~4" | 1" | Ø560 | 1731 | 700 | 350 | 760 | Ø704 | Ø18 | 116~160 | 511~704 |
| TRQ41~52 | 30" | 4"~6" | 1" | Ø600 | 1569 | 800 | 400 | 800 | Ø744 | Ø18 | 123~156 | 542~687 |
| TRQ41~52 | 40" | 4"~6" | 1" | Ø600 | 1819 | 800 | 400 | 800 | Ø744 | Ø18 | 164~208 | 722~916 |
| TRQ53~57 | 30" | 4"~6" | 1" | Ø650 | 1638 | 850 | 450 | 850 | Ø794 | Ø18 | 159~171 | 700~753 |
| TRQ53~57 | 40" | 4"~6" | 1" | Ø650 | 1908 | 850 | 450 | 850 | Ø794 | Ø18 | 212~228 | 933~1004 |
| TRQ58~82 | 30" | 4"~6" | 1-1/2" | Ø762 | 1711 | 950 | 500 | 962 | Ø962 | Ø19 | 174~246 | 766~1083 |
| TRQ58~82 | 40" | 4"~6" | 1-1/2" | Ø762 | 1961 | 950 | 500 | 962 | Ø962 | Ø19 | 232~328 | 1021~1444 |
