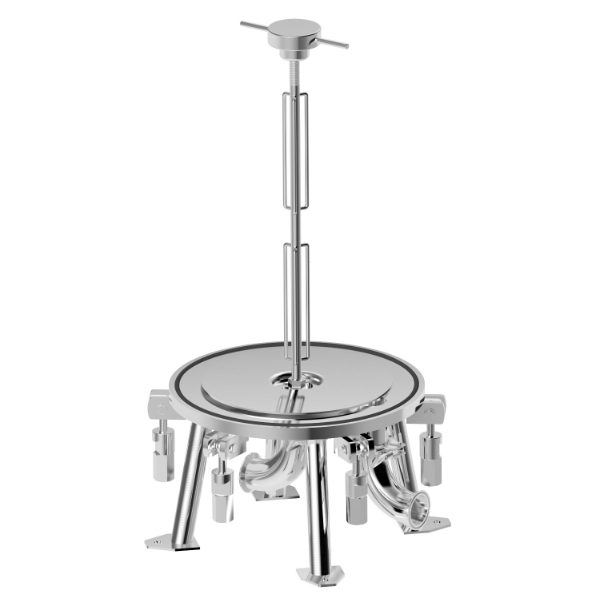

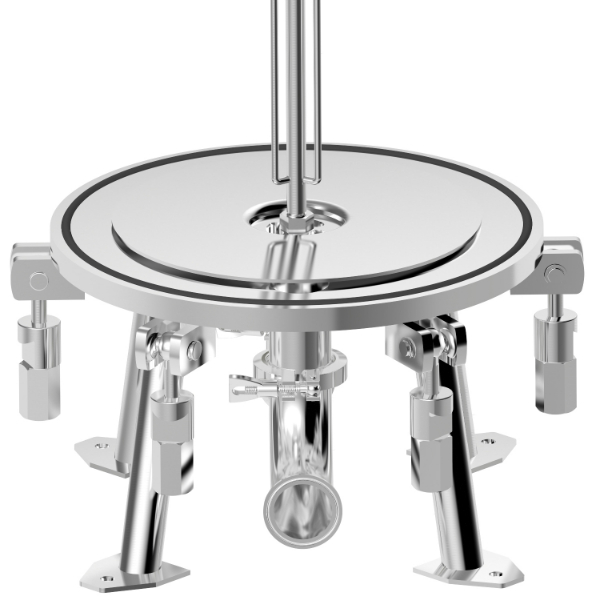

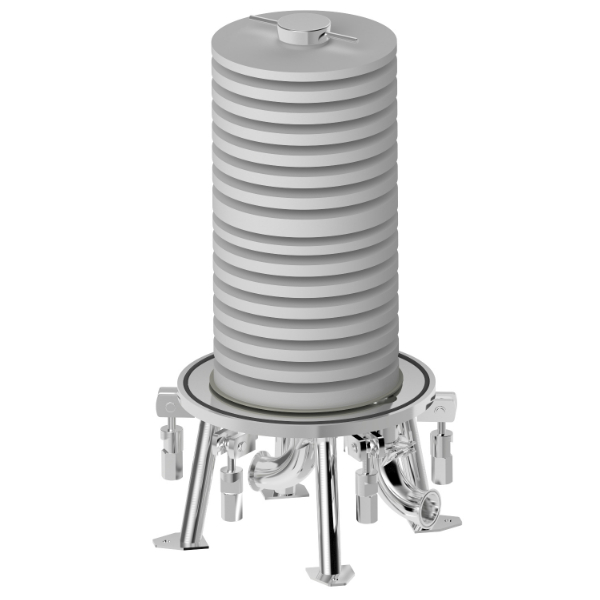

1. Available for Horizonta plate filter.
2. 0.2RA surface roughness.
3. Complete inside and outside finishing with no blind spot to prevent residual dirt.
4. Padlock with eye bolt closure prevents spillage.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| SZ | 12 | 3 | 6 | 2 | C | E | PP |
| Model | Filter Size | No. of Filter | Material | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
SZ |
8-8" 12-12" 16-16" |
1-1PC 2-2PCS 3-3PCS 4-4PCS |
4-304 6-316 6L-316L |
1-1" 121-1-1/2" 2-2" 221-2-1/2" 3-3” |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
E-Electropolishing P-Polishing |

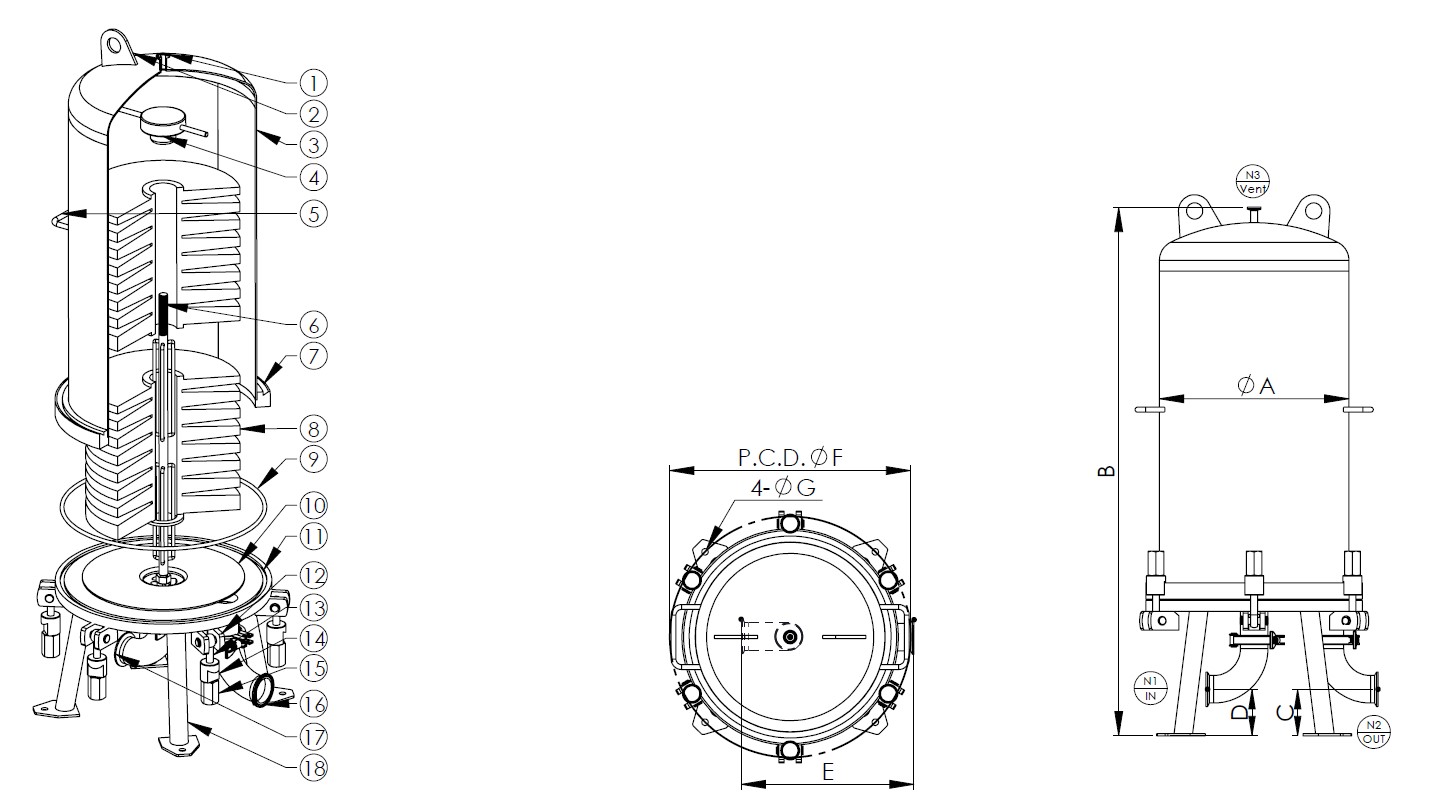

1. Vent
2. Lifting lug
3. Shell
4. Nut
5. Handle
6. Threaded rod
7. Shell flange
8. Filter cartridge
9. O-ring
10. Support plate
11. Base
12. Eye bolt socket
13. Eye bolt
14. Padlock
15. Nut
16. Inlet
17. Outlet
18. Support leg
| Model | Qty of Filter | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E m/m | F(PCD) m/m | G m/m |
| SZ8 | 1 | 2" | 1/2" | Ø238 | 700 | 86 | 86 | 268 | Ø315 | Ø12 |
| SZ8 | 2 | 2" | 1/2" | Ø238 | 975 | 86 | 86 | 268 | Ø315 | Ø12 |
| SZ8 | 3 | 2" | 1/2" | Ø238 | 1250 | 86 | 86 | 268 | Ø315 | Ø12 |
| SZ12 | 1 | 2" | 1/2" | Ø350 | 700 | 86 | 86 | 318 | Ø445 | Ø12 |
| SZ12 | 2 | 2" | 1/2" | Ø350 | 975 | 86 | 86 | 318 | Ø445 | Ø12 |
| SZ12 | 3 | 2" | 1/2" | Ø350 | 1250 | 86 | 86 | 318 | Ø445 | Ø12 |
| SZ12 | 4 | 2" | 1/2" | Ø350 | 1525 | 86 | 86 | 318 | Ø445 | Ø12 |
