1. Up to 7 filter cartridge is the best choice for food industry, Pharmaceutical and other applications.
2. 0.2RA surface roughness.
3. Complete inside and outside finishing with no blind spot to prevent residual dirt.
4. Tightly seal of base and shell with clamp closure prevents spillage.
5. Padlock with eye bolt closure prevents spillage.
6. Available with 222 adapters.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| SM | 10 | 3 | 4 | 5 | 2 | C | S | PP |
| Model | No. of Rounds | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
SM |
2-40 |
3-30" 4-40" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
1-1" 121-1-1/2" 2-2" 221-2-1/2" 3-3” 4-4” |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
E-Electropolishing P-Polishing
|

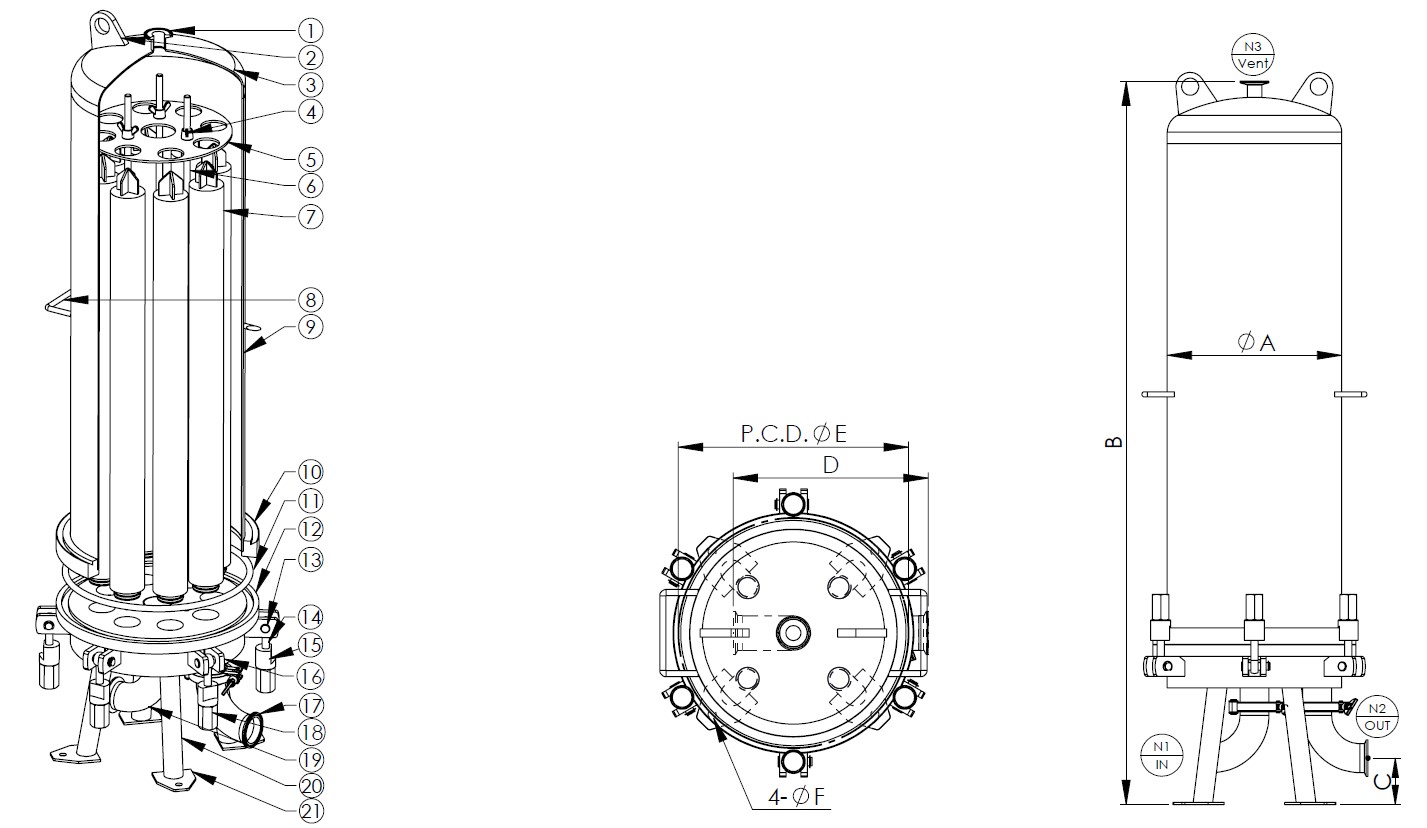

1. Vent
2. Lifting lug
3. Top Cover
4. Nut
5. Pressure plate
6. Threaded rod
7. Filter cartridge
8. Handle
9. Shell
10. Shell flange
11. O-ring
12. Base
13. Spindle
14. Eye bolt
15. Padlock
16. Eye bolt socket
17. Outlet
18. Nut
19. Inlet
20. Support Leg
21. Leg base plate
| Model | Length | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E(PCD) m/m | F m/m | M³/Hr | GPM |
| SM2~6 | 30" | 2" | 1" | Ø232 | 1204 | 120 | 284 | Ø281 | Ø14 | 6~18 | 26~79 |
| SM7~8 | 30" | 2" | 1" | Ø306 | 1314 | 120 | 288 | Ø340 | Ø14 | 21~24 | 92~106 |
| SM9~11 | 30" | 2" | 1" | Ø350 | 1326 | 120 | 288 | Ø385 | Ø14 | 27~33 | 119~145 |
| SM12~18 | 30" | 2" | 1" | Ø406 | 1334 | 120 | 288 | Ø440 | Ø14 | 36~54 | 159~238 |
| SM19~26 | 30" | 2" | 1" | Ø508 | 1358 | 120 | 288 | Ø542 | Ø14 | 57~78 | 251~343 |
| SM27~40 | 30" | 2" | 1" | Ø560 | 1369 | 120 | 288 | Ø605 | Ø14 | 81~120 | 357~528 |
