1. Sanitary type single filter cartridge housing is the best choice for food industry, Pharmaceutical and other applications.
2. 0.2RA surface roughness.
3. Complete inside and outside finishing with no blind spot to prevent residual dirt.
4. Tightly seal of base and shell with clamp closure prevents spillage.
5. Up to 20" tall shell with two clamp closures allows for easy clean and cartridges change-outs without tool.
6. Available with 222 adapters.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| SL | 6 | 2 | 4 | 5 | 2 | C | E | PP |
| Model | No. of Rounds | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
SL |
2 3 4 5 6 |
1-10" 2-20" 3-30" 4-40" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
21-1/2" 43-3/4" 1-1" 121-1-1/2" 2-2" 221-2-1/2" |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
E-Electropolishing P-Polishing |

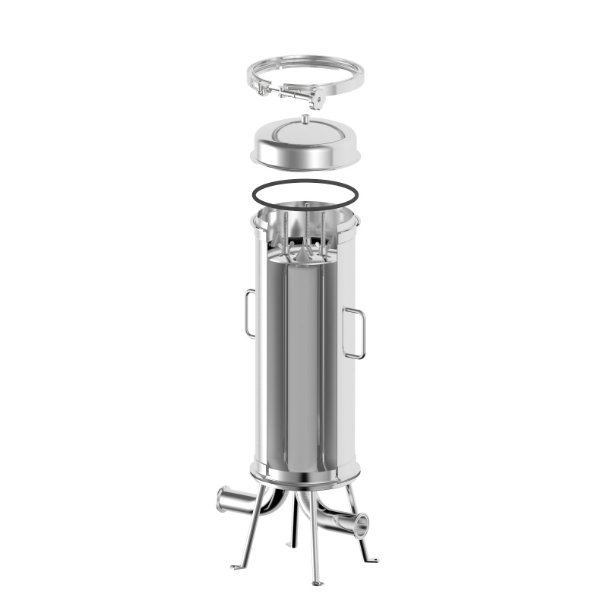

1. Clamp
2. Vent
3. Top cover
4. O-ring
5. Threaded rod
6. Nut
7. Pressure plate
8. Shell flange

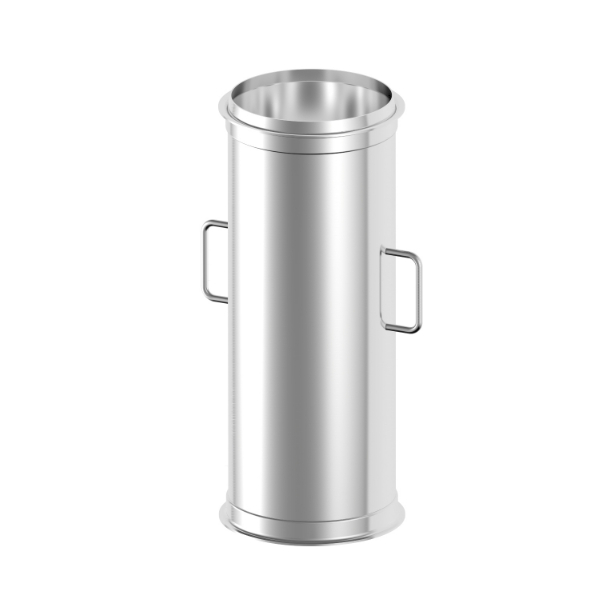

9. Shell
10. Handle

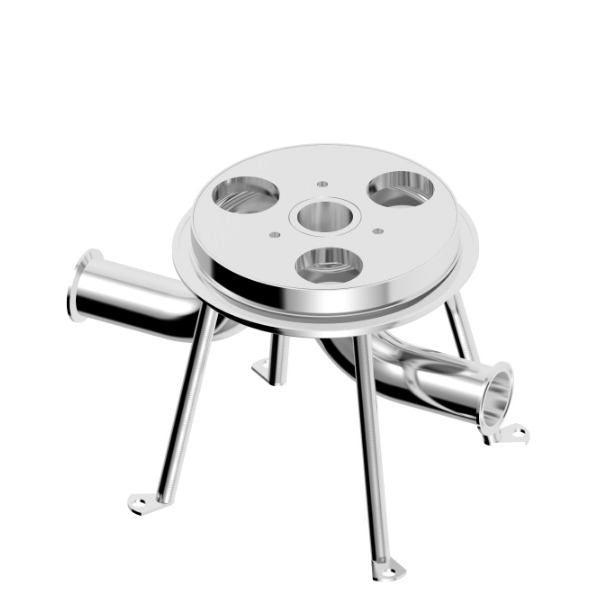

11. Base
12. Outlet
13. Inlet
14. Support Leg
| 商品コード | カートリッジ寸法 | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E(PCD) m/m | F m/m | M³/Hr | GPM |
| SL2~6 | 10" | 2" | 1/4" | Ø232 | 675 | 120 | 332 | Ø368 | Ø12 | 2~6 | 9~26 |
| SL2~6 | 20" | 2" | 1/4" | Ø232 | 925 | 120 | 332 | Ø368 | Ø12 | 4~12 | 18~53 |
| SL2~6 | 30" | 2" | 1/4" | Ø232 | 1175 | 120 | 332 | Ø368 | Ø12 | 6~18 | 26~79 |
| SL2~6 | 40" | 2" | 1/4" | Ø232 | 1425 | 120 | 332 | Ø368 | Ø12 | 8~24 | 35~106 |
