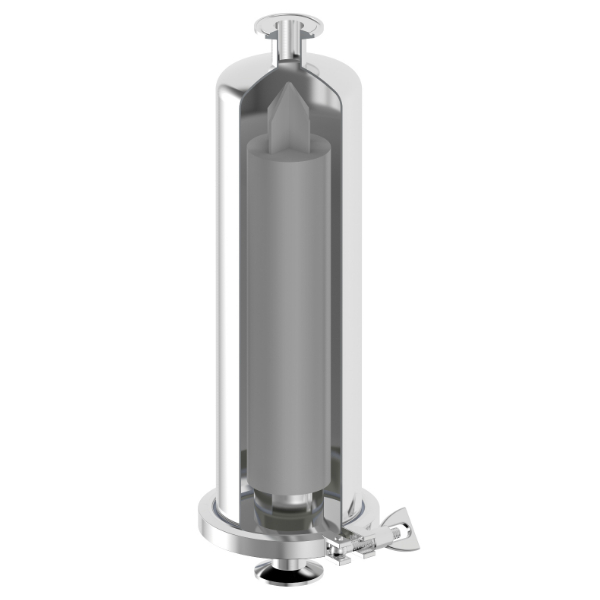

1. Straight type air filter housing is designed for air filter application and also for other liquid filter applications.
2. Available with 222 adapters.
3. 0.2RA surface roughness.
4. Complete inside and outside finishing with no blind spot to prevent residual dirt.
5. Tightly seal of base and shell with clamp closure prevents spillage.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| SJ | 1 | 6 | 5 | 1 | C | S | PP |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
SJ |
1-10" 2-20" 3-30" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
41-1/4” 21-1/2" 43-3/4” 1-1" 121-1-1/2" 2-2" 221-2-1/2" |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
E-Electropolishing P-Polishing |
1. Clamp
2. Bottom cover
3. Shell

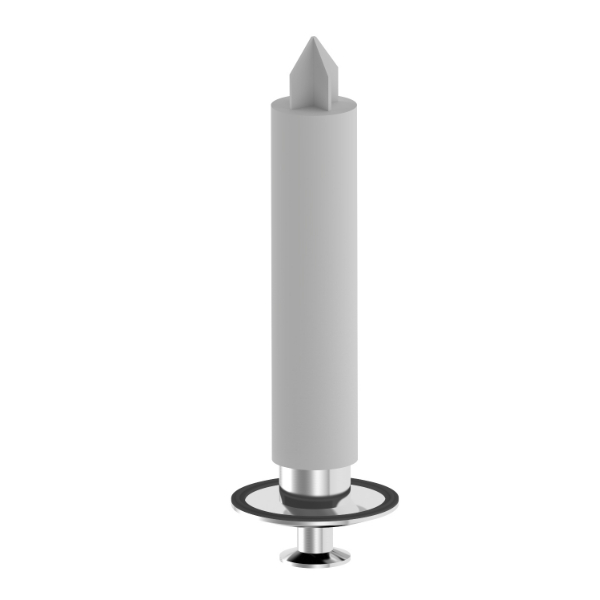

4. Filter cartridge
5. Shell flange
6. Gasket

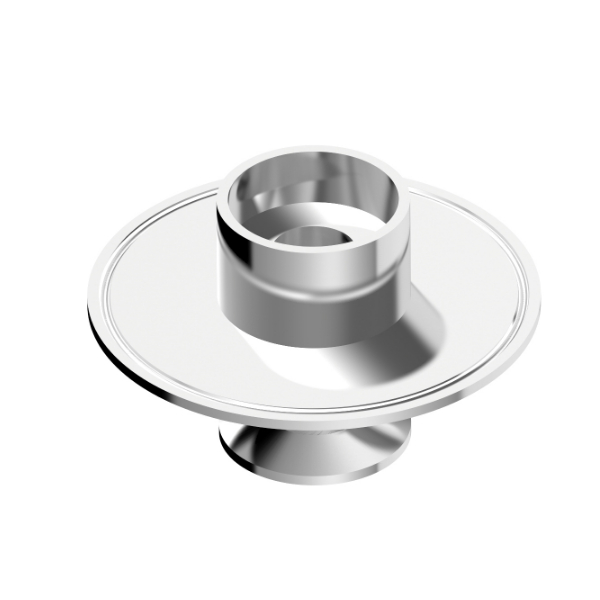

7. Base
| Model | Length | N1/N2 | A m/m | B m/m | C m/m | M³/Hr | GPM |
| SJ1 | 10" | 1" | Ø106 | 430 | 43.5 | 5 | 22 |
| SJ2 | 20" | 1" | Ø106 | 685 | 43.5 | 10 | 44 |
| SJ3 | 30" | 1" | Ø106 | 940 | 43.5 | 15 | 66 |
