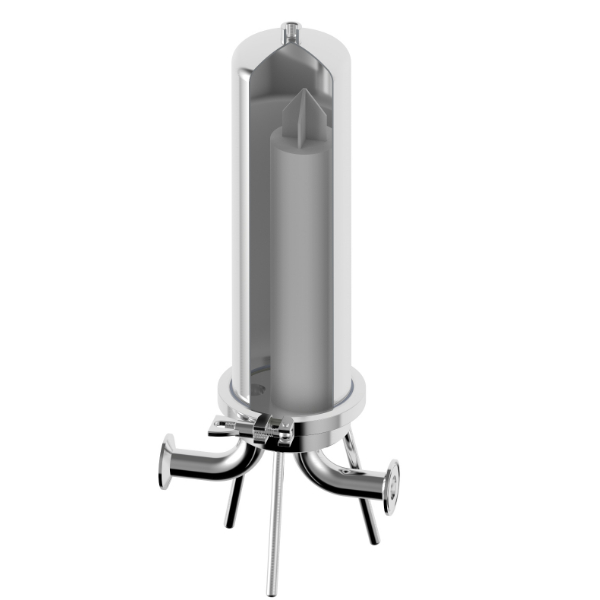

1. Sanitary type single filter cartridge housing is the best choice for food industry, Pharmaceutical and other applications.
2. 0.2RA surface roughness.
3. Complete inside and outside finishing with no blind spot prevents residual dirt.
4. Tightly seal of base and shell with clamp type closure prevents spillage.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| SA | 1 | 4 | F | 1 | C | E | PP |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
SA |
1-10" 2-20" 3-30" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
43-3/4" 1-1" |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE T-TEFLON |
E-Electropolishing P-Polishing |

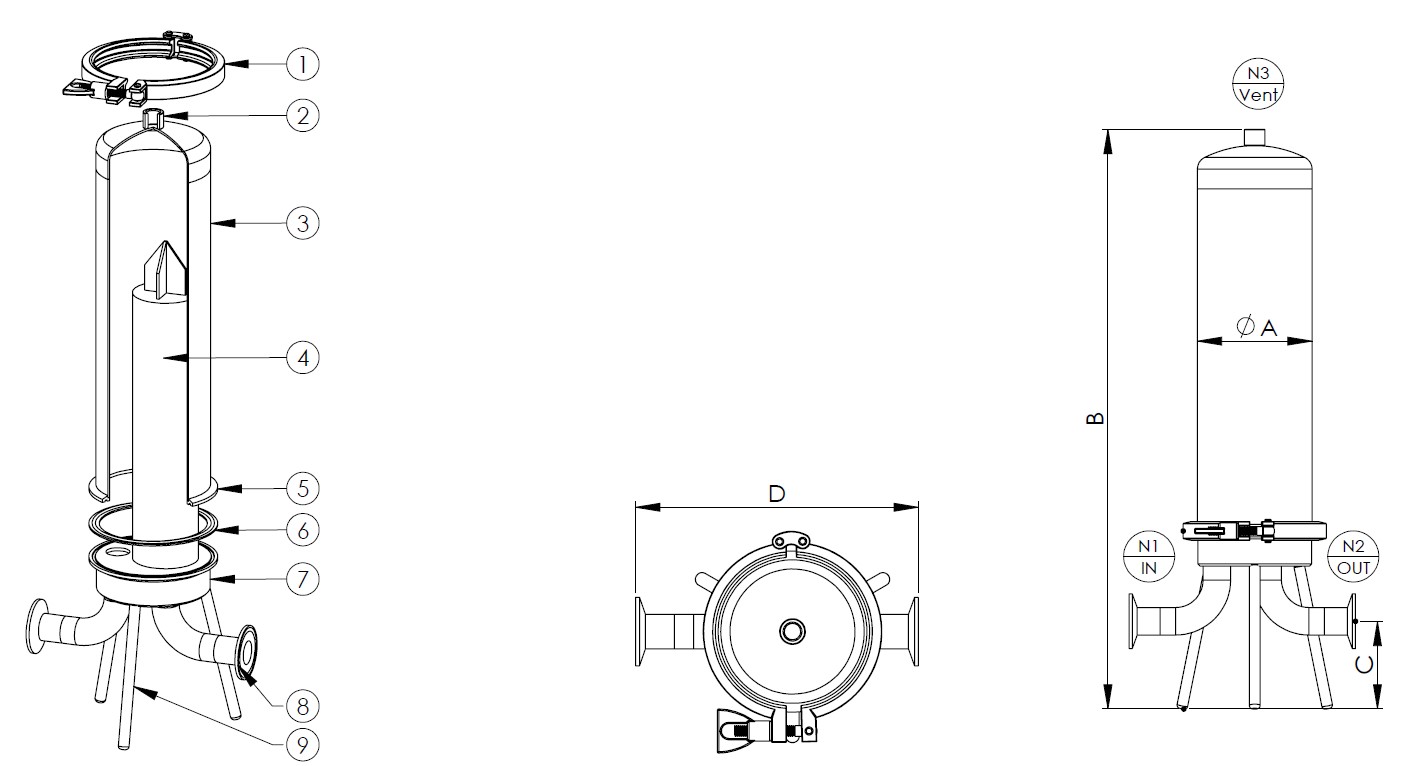

1. Clamp
2. Vent
3. Shell
4. Filter Cartridge
5. Shell flange
6. Gasket
7. Base
8. Inlet / Outlet
9. Support leg
| Model | Length | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | M³/Hr | GPM |
| SA1 | 10" | 1" | 1/4" | Ø106 | 503 | 80 | 207 | 1 | 4 |
| SA2 | 20" | 1" | 1/4" | Ø106 | 753 | 80 | 207 | 2 | 9 |
| SA3 | 30" | 1" | 1/4" | Ø106 | 1003 | 80 | 207 | 3 | 13 |
