1. Efficient filtering with High flow velocity.
2. Tightly seal of top and bottom cover and shell.
3. Strong consistency of RH8 membrane and allows for excellent durability.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| RH8 | 4 | 4 | 1 | PF | 1 | V | E | BA |
| Model | Model | Shell Matrial | N1 Size | N1 Type | N2 Size | N2 Type | O-ring | Outside & Inside Finishes |
RH8 |
4-40" 8-80" 12-120" 16-160" 20-200" |
4-304 6-316 |
1-1" 121-1-1/2" 2-2" |
PF-PT/BSPT/Rc NF-NPT (Female) V-Mechanical joint C-Clamp
|
1-1" 121-1-1/2" 2-2" |
PF-PT/BSPT/Rc NF-NPT (Female) V-Mechanical joint C-Clamp
|
E-EPDM N-NBR V-VITON |
A-ACID-pickling B-Burnishing P-Polishing |

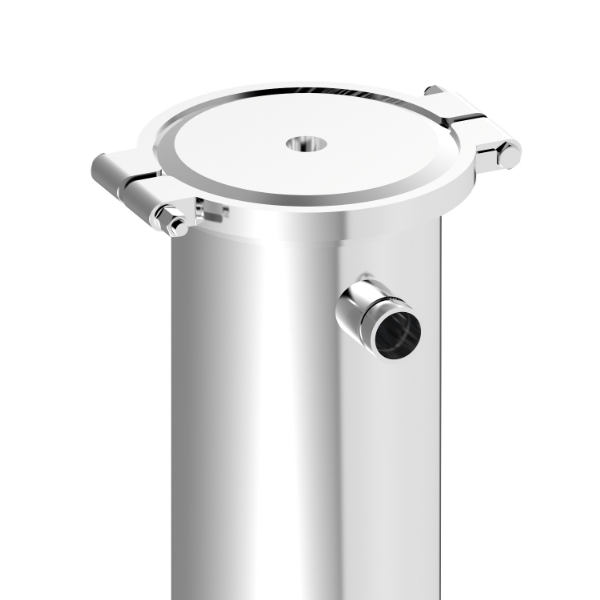

1. Clamp

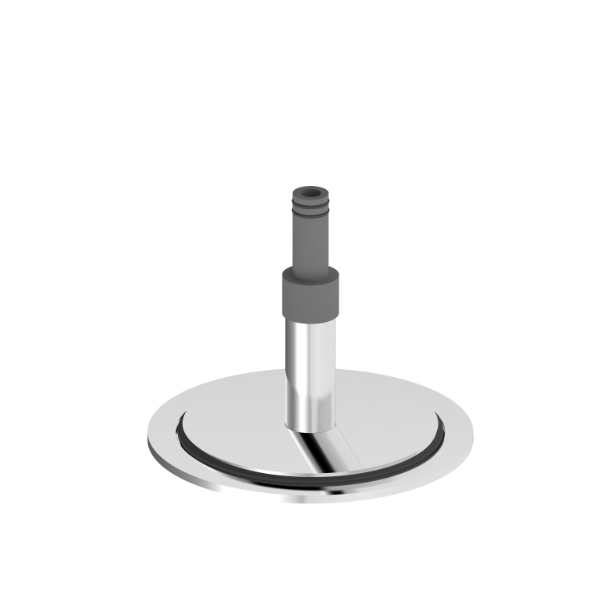

2. RO Head
3. O-Ring
4. PVC Coupling
5. O-Ring
6. Shell flange
7. Mechanical joint

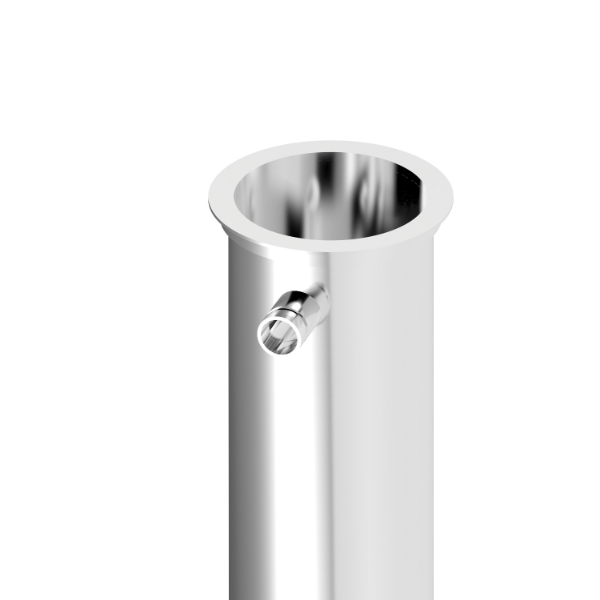

8. Shell
| Model | N1 | N2 | A m/m | B m/m | C m/m | D m/m |
| RH8-4 | 1" | 1-1/2" | Ø216 | 1137 | 1300 | 1132 |
| RH8-8 | 1" | 1-1/2" | Ø216 | 2353 | 2316 | 2148 |
| RH8-12 | 1" | 1-1/2" | Ø216 | 3369 | 3332 | 3164 |
| RH8-16 | 1" | 1-1/2" | Ø216 | 4385 | 4348 | 4180 |
| RH8-20 | 1" | 1-1/2" | Ø216 | 5401 | 5364 | 5196 |
