RA8

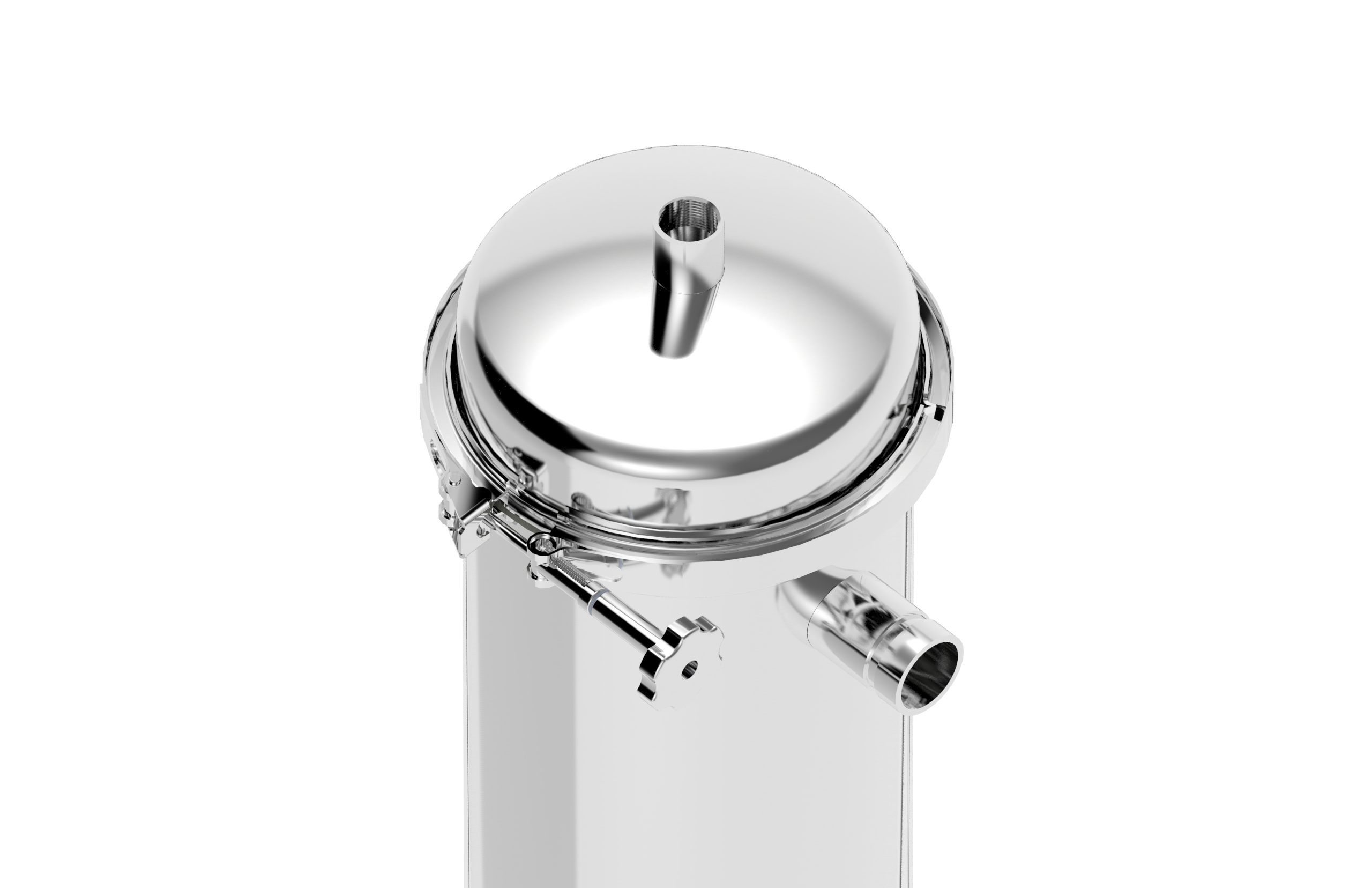

RO Membrane Housing (Band Clamp Type)

Design P.: 150 PSI

Design T.: 100°C

Max Operating P.: 150 PSI

Operating T.: 75°C



Standard Nozzel: N1-1" PT-F.

                               N2-1 1/2"V. Mechanical Joint.

Feature

1. Efficient filtering with High flow velocity.

2. Tightly seal of top and bottom cover and shell.

3. Strong consistency of RL8 membrane and allows for excellent durability.

Applications

Water treatment

RO protection and pre-filtration process

Seawater

Groundwater

Sludge treatment

Food & Beverage Industry

Wine & Beer

Food industry

Chemicals & Biotechnology

Pharmaceutical & Cosmetic

Electroplating Industry

Electronic Industry

Semiconductor

Refinery & Production Filtration

Automotive

Mining, Oil & Gas

Cooling tower

Purchase Code
RA8 4 4 1 PF 1 V E BA
Model Length Material N1 Size N1 Type N2 Size N2 Type O-ring Outside & Inside Finishes

RA8

4-40"

4-304

6-316

1-1"

121-1-1/2"

2-2"

PF-PT/BSPT/Rc
      (Female)

NF-NPT (Female)

V-Mechanical joint

C-Clamp



1-1"

121-1-1/2"

2-2"

PF-PT/BSPT/Rc
      (Female)

NF-NPT (Female)

V-Mechanical joint

C-Clamp



E-EPDM

N-NBR

V-VITON

A-ACID-pickling

B-Burnishing

P-Polishing
Drawing

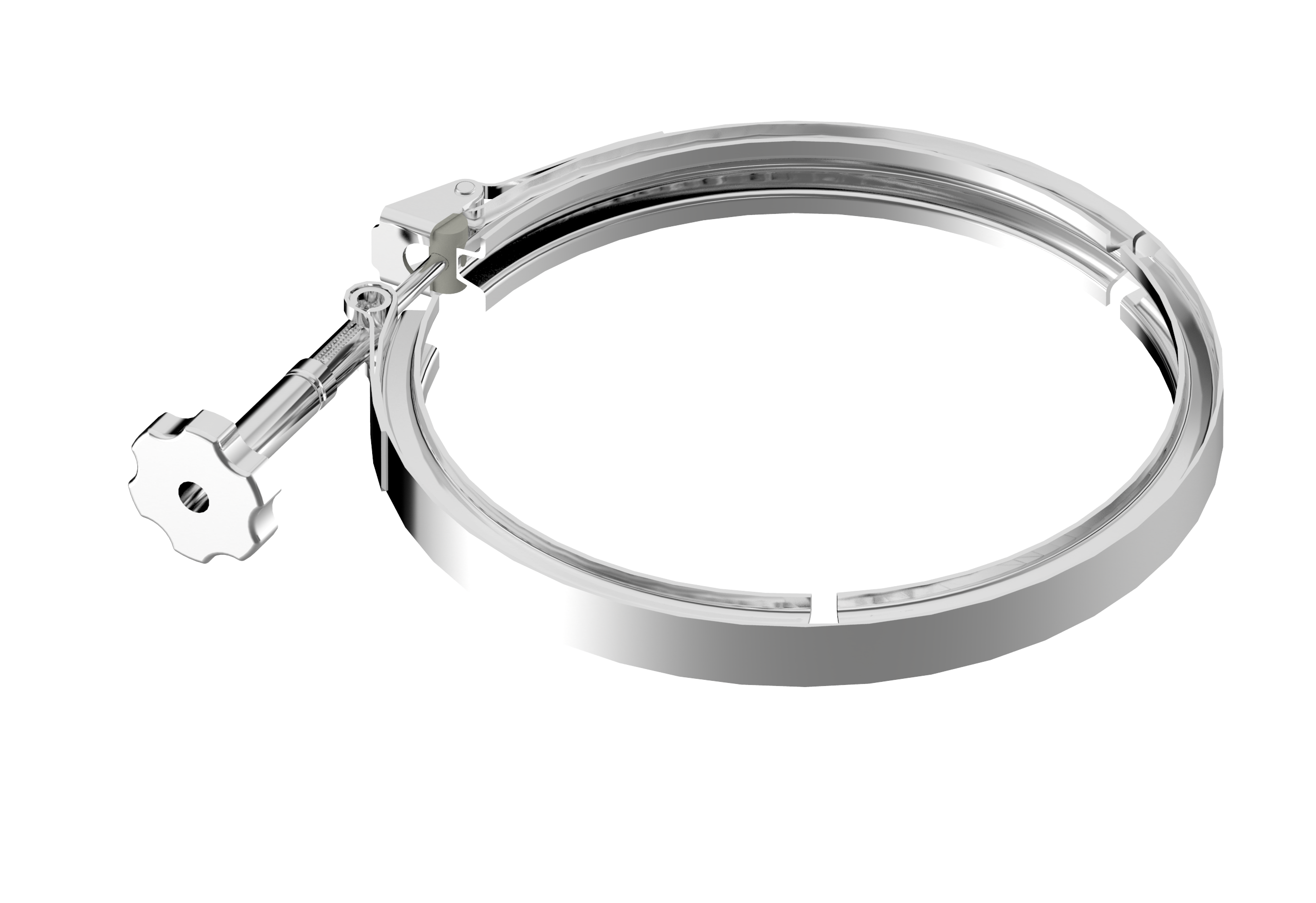

1. Clamp

2. RO Head

3. O-Ring

4. PVC Coupling

5. O-Ring

6. Shell flange

7. Mechanical joint

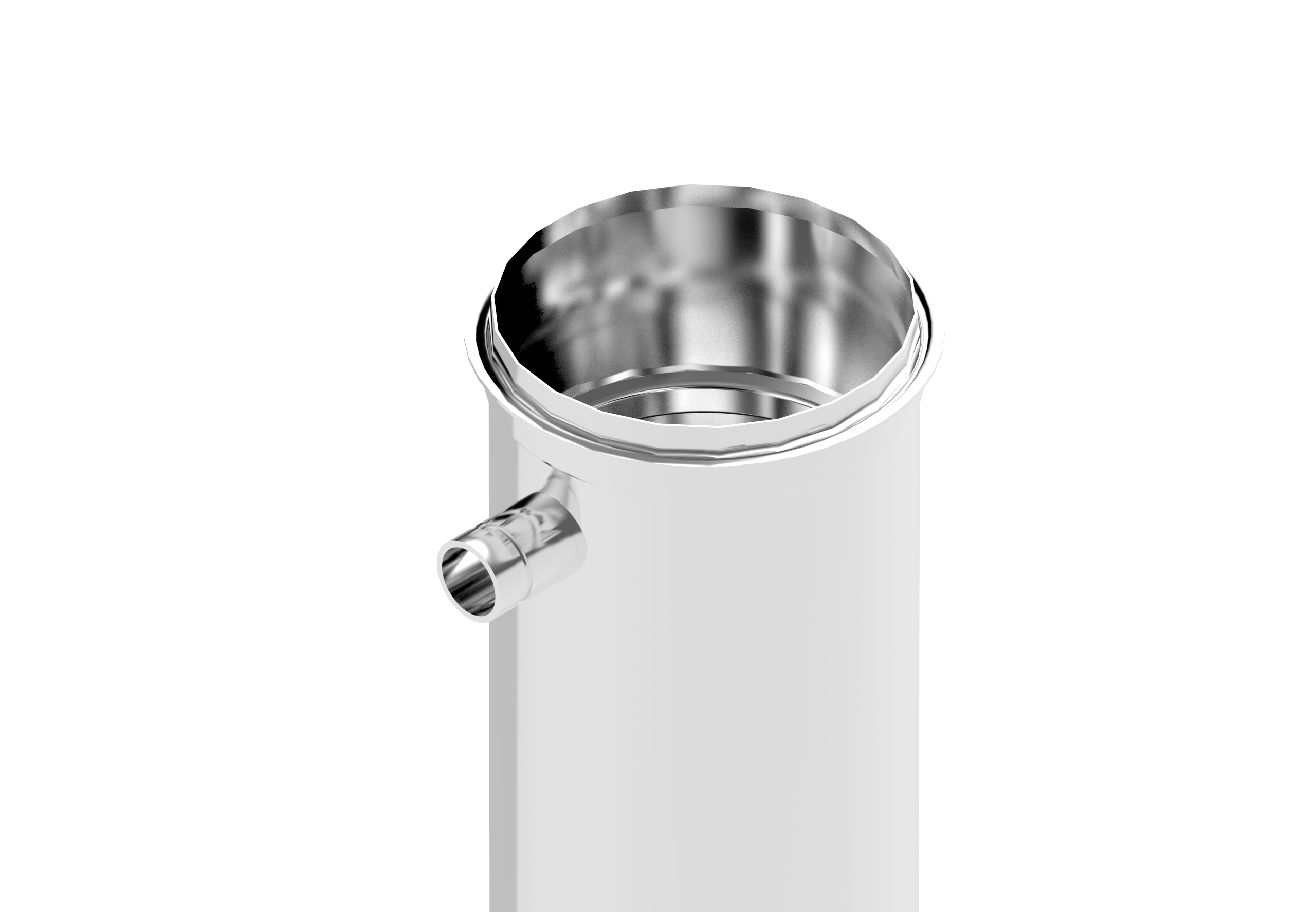

8. Shell

Specification
Model N1 N2 A m/m B m/m C m/m D m/m
RL8-4 1" 1-1/2" Ø232 1481 1070 178
