Feature
1. Sanitary Tank is capable of high volume.
2. 0.2RA surface roughness.
3. SPI 0.2 RA micron inside and surface finish.
4. Optimum sealing provide corrosion resistance and no residual dirt.
Applications
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
Purchase Code
| LS | 10 | 4 | 3 | PP |
| Model | Volume | Material | Manhole Size | Outside & Inside Finishes |
LS |
5-500L 10-1000L 15-1500L 20-2000L 25-2500L 30-3000L 35-3500L 40-4000L 45-4500L 50-5000L |
4-304 6-316 6L-316L |
3-300 4-400 5-500 |
A-Acid pickling P-Polishing |

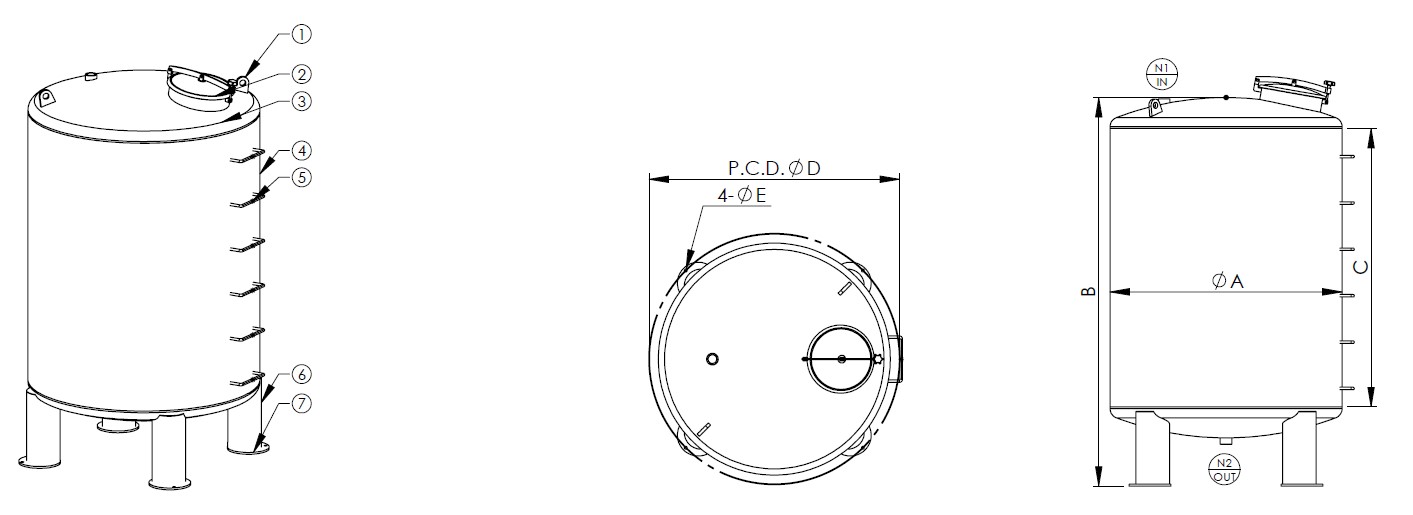

Drawing
1. Lifting lug

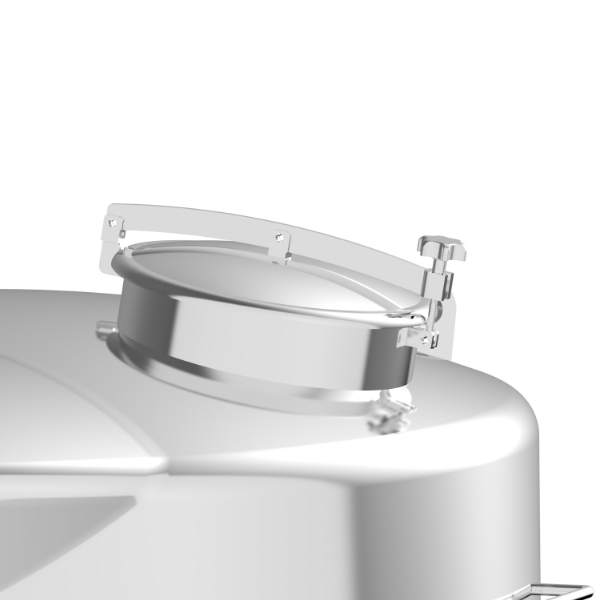

2. Man hole
3. Bottom cover
4. Shell
5. Ladder

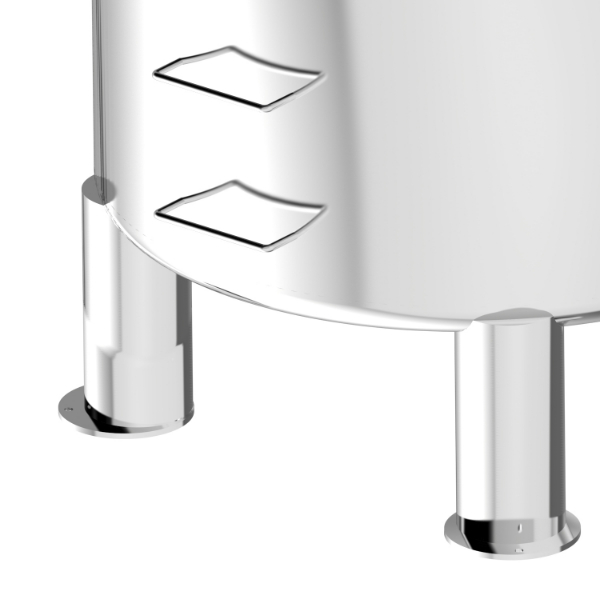

6. Support leg
7. Leg base plate
Specification
| Model | N1 Vent | N2 Drain | A m/m | B m/m | C m/m | D(PCD0 m/m | E m/m | Volume |
| LS5 | 1/2"PT-F | 2"PT-F | Ø762 | 1680 | 1100 | Ø899 | Ø10 | 500L |
| LS10 | 1/2"PT-F | 2"PT-F | Ø970 | 2010 | 1400 | Ø1130 | Ø10 | 1000L |
| LS15 | 1/2"PT-F | 2"PT-F | Ø1200 | 1945 | 1300 | Ø1474 | Ø18 | 1500L |
| LS20 | 1/2"PT-F | 2"PT-F | Ø1300 | 2165 | 1500 | Ø1574 | Ø18 | 2000L |
| LS25 | 2"PT-F | 2"PT-F | Ø1500 | 2200 | 1500 | Ø1774 | Ø18 | 2500L |
| LS30 | 2"PT-F | 2"PT-F | Ø1500 | 2500 | 1800 | Ø1774 | Ø18 | 3000L |
| LS35 | 2"PT-F | 2"PT-F | Ø1500 | 2700 | 2000 | Ø1774 | Ø18 | 3500L |
| LS40 | 2"PT-F | 2"PT-F | Ø1500 | 3000 | 2300 | Ø1774 | Ø18 | 4000L |
| LS45 | 2"PT-F | 2"PT-F | Ø1500 | 3300 | 2600 | Ø1774 | Ø18 | 4500L |
| LS50 | 2"PT-F | 2"PT-F | Ø1500 | 3500 | 2800 | Ø1774 | Ø18 | 5000L |
