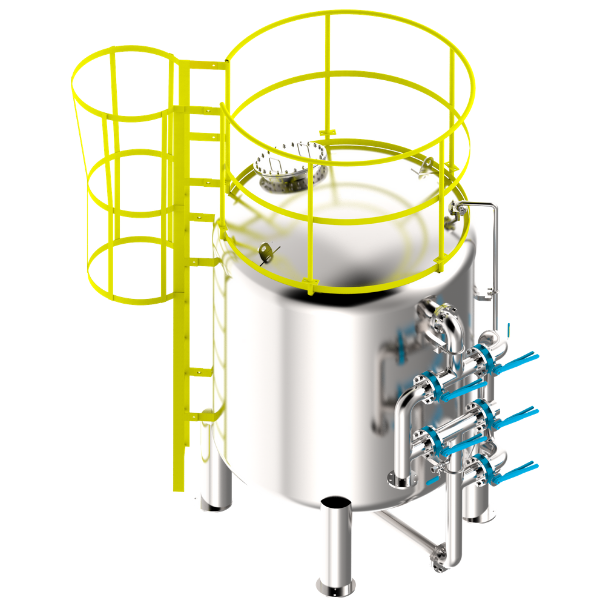

1. Wide application in soft water and quartz sand filtration.
2. Manual and auto valves with optional joint. Easy and handy to operate.
3. Firm and thick shell with strong welding prevent housing from leaking.
4. Strong material construction provides excellent durability.
5. Optional accessory: Catchment, Level pipe, Sight glass, Manual valve, Auto valve, Ladder.
Water treatment

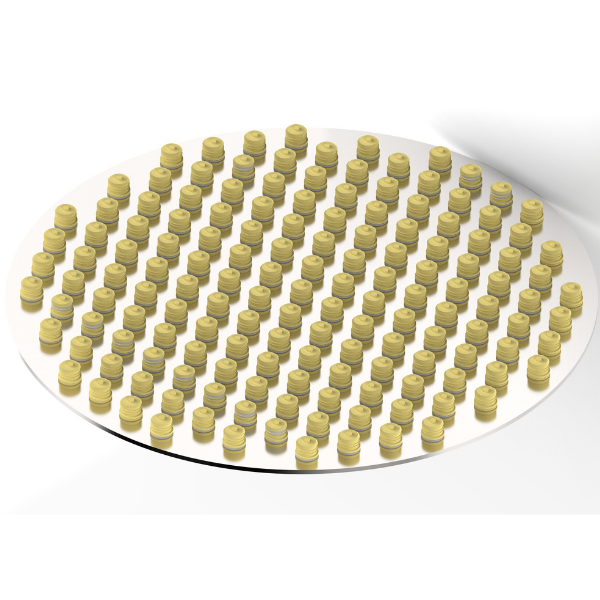

RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| LM | 10 | 4 | P | 1 | L | 221 | 10K | E | P |
| Model | Diameter | Material | Catchment | Sight glass | Ladder | Connection Size | Connection Type | Gasket | Outside & Inside Finishes |
LM
|
10-Ø1000 11-Ø1100 12-Ø1200 13-Ø1300 14-Ø1400 15-Ø1500 16-Ø1600 17-Ø1700 18-Ø1800 19-Ø1900 20-Ø2000 |
4-304 6-316 6L-316L S-SS400 |
P-Pipe N-Nozzle |
0-No 1-1 2-2 |
L-Ladder LC-Ladder cage |
221-2-1/2" 3-3" 4-4" |
150P-ANSI 10K-JIS PN10-DIN |
E-EPDM N-NBR V-VITON S-SILICONE |
A-Pickling P-Polishing S-Sand Blasting E-Epoxy |

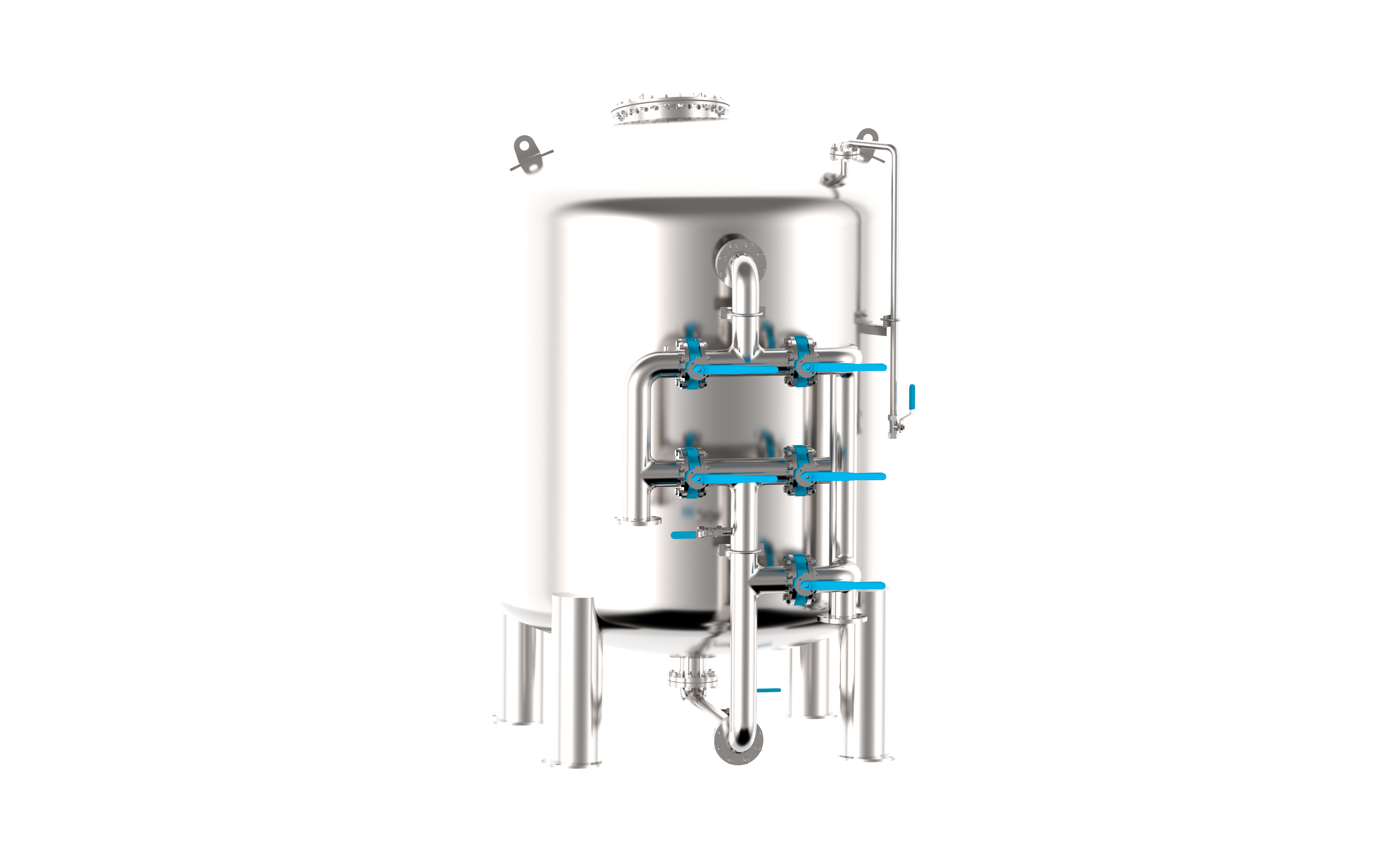

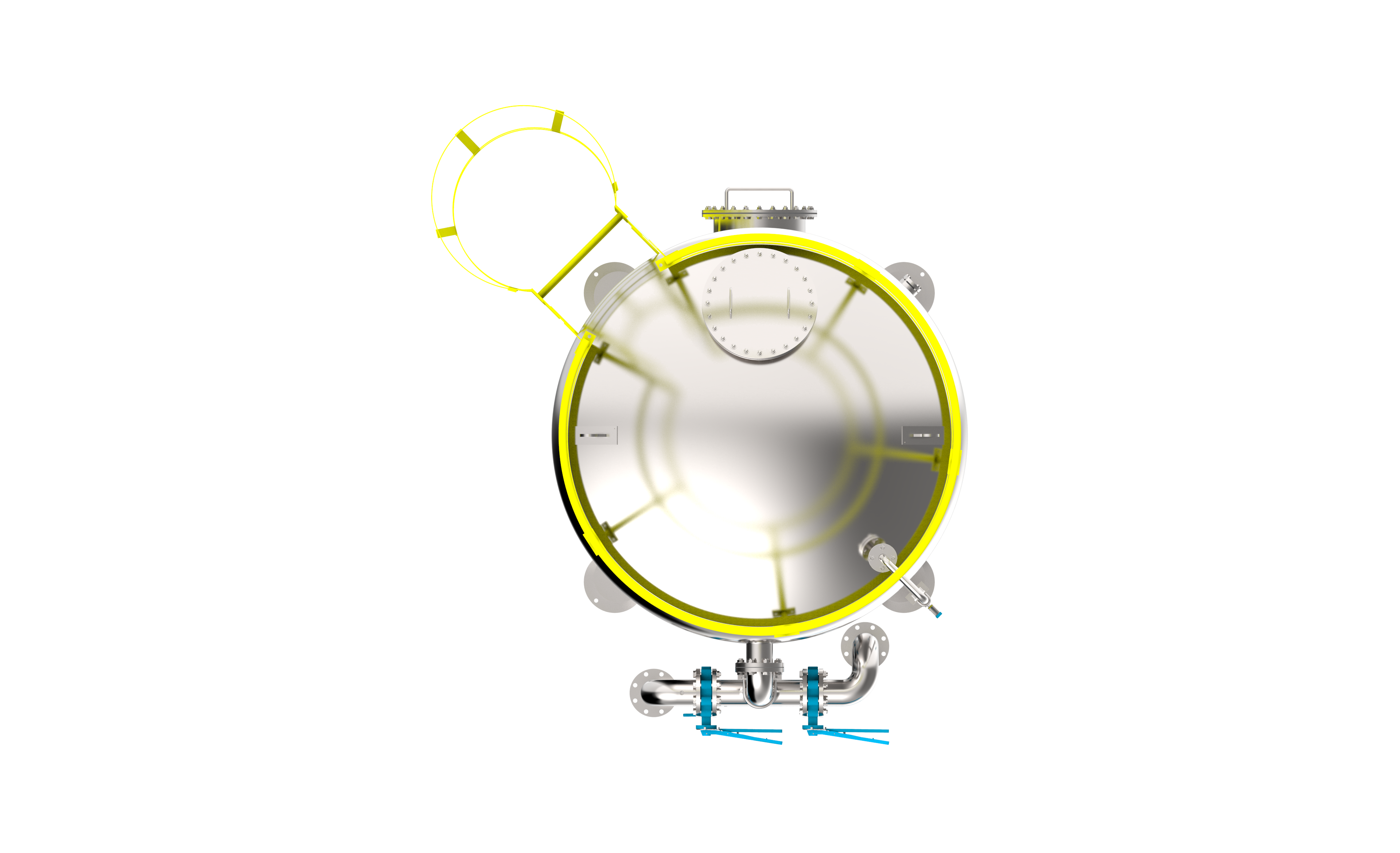

1. Man hole
2. Lifting Lug
3. Bottom cover
4. Shell
5. Ladder
6. Sight glass
7. Water collecting pipe
8. Water collecting pip
9. Support leg
10. Leg base plate
11. Piping group
| Model | Inlet & Outlet | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | G m/m |
M³/Hr |
Volume |
| LM10 | 2-1/2F | Ø1000 | 510 | 1525 | 2245 | Ø1210 | Ø18 | 200 | 35 | 1400L |
| LM11 | 2-1/2F | Ø1100 | 530 | 1525 | 2285 | Ø1310 | Ø18 | 250 | 50 | 1700L |
| LM12 | 2-1/2F | Ø1200 | 600 | 1525 | 2375 | Ø1410 | Ø18 | 300 | 60 | 2100L |
| LM13 | 2-1/2F | Ø1300 | 620 | 1525 | 2415 | Ø1510 | Ø18 | 350 | 65 | 2500L |
| LM14 | 3F | Ø1400 | 640 | 1525 | 2455 | Ø1610 | Ø18 | 400 | 85 | 2500L |
| LM15 | 3F | Ø1500 | 660 | 1525 | 2495 | Ø1710 | Ø18 | 450 | 90 | 3500L |
| LM16 | 4F | Ø1600 | 685 | 1525 | 2545 | Ø1810 | Ø18 | 500 | 110 | 4000L |
| LM17 | 4F | Ø1700 | 705 | 1525 | 2580 | Ø1908 | Ø18 | 550 | 120 | 4600L |
| LM18 | 4F | Ø1800 | 725 | 1525 | 2616 | Ø2008 | Ø18 | 600 | 150 | 5300L |
| LM19 | 4F | Ø1900 | 745 | 1525 | 2650 | Ø2143 | Ø23 | 650 | 160 | 6000L |
| LM20 | 4F | Ø2000 | 765 | 1525 | 2690 | Ø2243 | Ø23 | 700 | 190 | 6700L |
