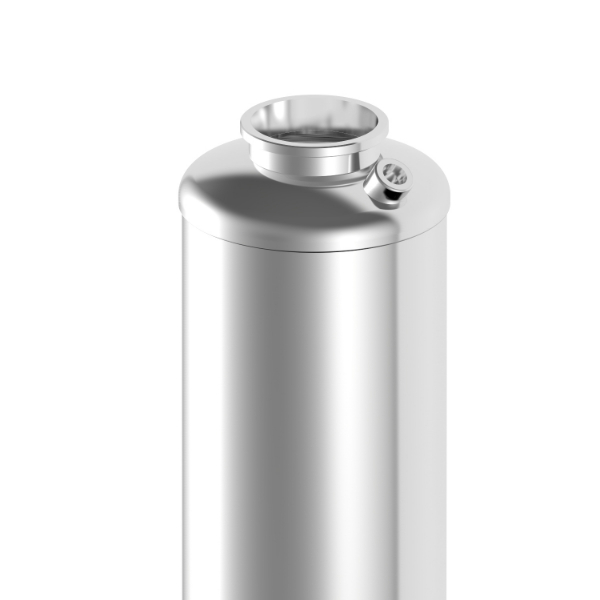

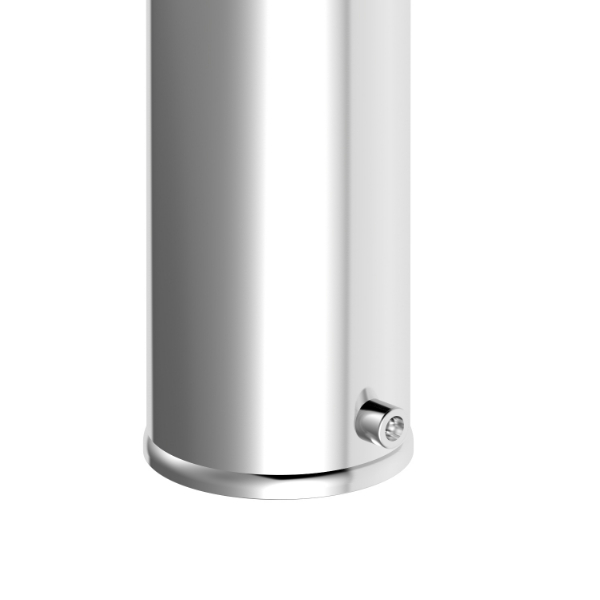

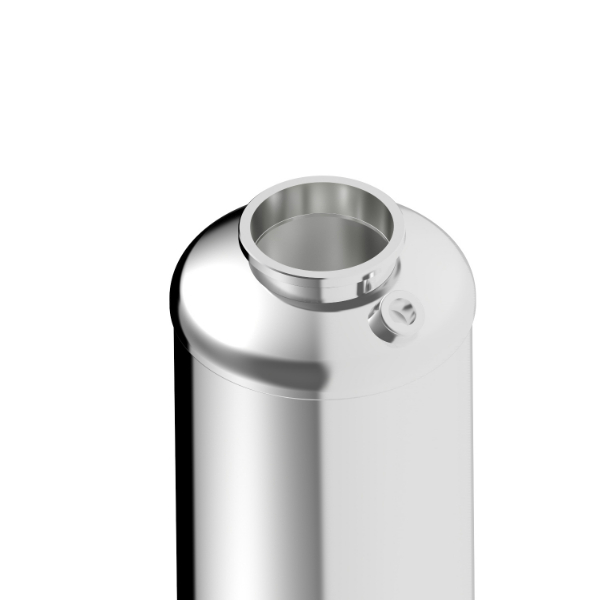

Sand Filter Housing (Standard Type)

Design P.: 150 PSI

Design T.: 65°C

Max Operating P.: 150 PSI

Operating T.: 40°C



Accessory: Cartridges.

Feature

1. Suitable for softened water and quartz sand filtration applications.

2. Component with manually and electrically Joint.

3. Tough and thick shell prevents housing form leaking.

4. Strong metal consistency allows for excellent durability.

Applications

Water treatment

RO protection and pre-filtration process

Seawater

Groundwater

Sludge treatment

Food & Beverage Industry

Wine & Beer

Food industry

Chemicals & Biotechnology

Pharmaceutical & Cosmetic

Electroplating Industry

Electronic Industry

Semiconductor

Refinery & Production Filtration

Automotive

Mining, Oil & Gas

Cooling tower

Purchase Code
LA 9 40 4 4 1 PF 1 PF EA
Model Diameter (Inch) Height (Inch) Material Joint Size Inlet Size Inlet Type Drain Size Drain Type Outside & Inside Finishes

LA

7-7"

~

22-22"

13-13"

~

67-67"

4-304

6-316

6L-316L

221-2-1/2"

4-4"

1-1"

2-2"

PF-PT/BSPT/Rc
      (Female)

NF-NPT (Female)

BF-BSPF/G
    (Female)

43-3/4“

1-1"

121-1-1/2"

2-2"

PF-PT/BSPT/Rc
      (Female)

NF-NPT (Female)

BF-BSPF/G
    (Female)

A-ACID-Pickling

E-Electropolishing

P-Polishing

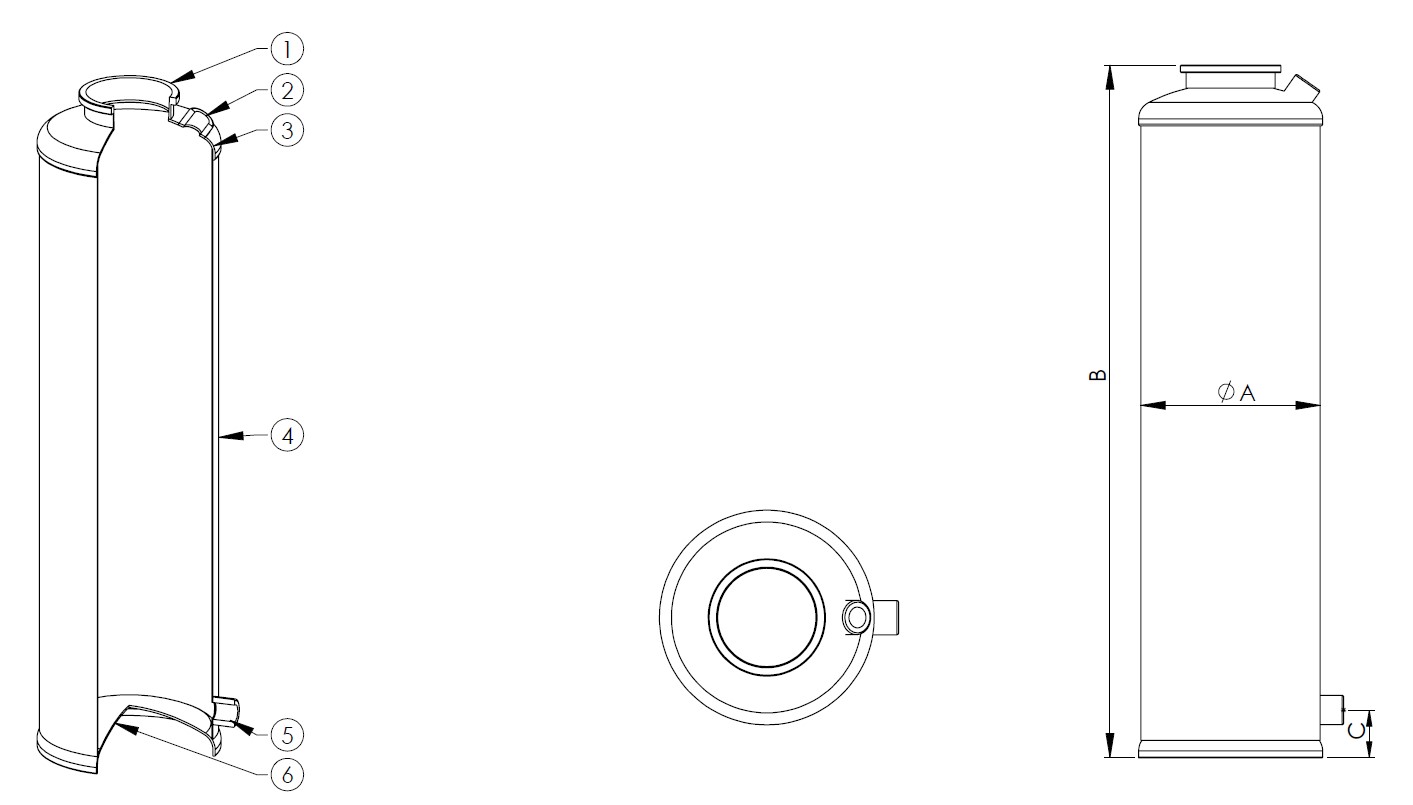

Drawing

1. Joint

2. Inlet

3. Top cover

4. Shell

5. Drain

6. Bottom cover

Specification
Model A m/m B m/m C m/m Weight Volume
LA7-13 Ø180 334 70 7kg 8L
LA7-17 Ø180 430 70 7kg 10L
LA7-19 Ø180 488 70 8kg 12L
LA7-24 Ø180 620 70 8kg 15L
LA7-30 Ø180 764 70 9kg 19L
LA7-35 Ø180 898 70 10kg 22L
LA7-40 Ø180 1018 70 11kg 25L
LA7-44 Ø180 1129 70 12kg 28L
LA9-17 Ø232 431 70 9kg 18L
LA9-18 Ø232 459 70 9kg 19L
LA9-35 Ø232 896 70 12kg 37L
LA9-40 Ø232 1018 70 13kg 43L
LA9-42 Ø232 1074 70 14kg 45L
LA9-48 Ø232 1228 70 15kg 51L
 LA10-16 Ø280   410  90 18kg  24L
LA10-18  Ø280  461  90  18kg  27L
LA10-30  Ø280  762  90  21kg  44L
LA10-35  Ø280  897  90  23kg  52L
LA10-40  Ø280  1020  90  24kg  60L
LA10-44  Ø280  1126  90  24kg  66L
LA10-47  Ø280  1200  90  26kg  70L
LA10-54  Ø280  1386  90  28kg  81L
LA12-48  Ø306  1232  80  32kg  87L
LA12-52 Ø306 1338 80 35kg 94L
LA14-44 Ø344 1140 85 35kg 105L
LA14-52 Ø344 1340 85 40kg 124L
LA14-55 Ø344 1400 85 41kg 130L
LA14-65 Ø344 1674 85 48kg 155L
LA16-52 Ø406 1341 85 47kg 168L
LA16-65 Ø406 1671 85 57kg 209L
LA20-56 Ø508 1432 85 60kg 259L
LA20-69 Ø508 1776 85 72kg 321L
LA20-81 Ø508 2079 85 83kg 376L
LA22-39 Ø552 1002 90 69kg 239L
LA22-56 Ø552 1434 90 92kg 343L
LA22-67 Ø552 1721 90 108kg 411L
