1. Single bag filter with adjustable support for simplified installation.

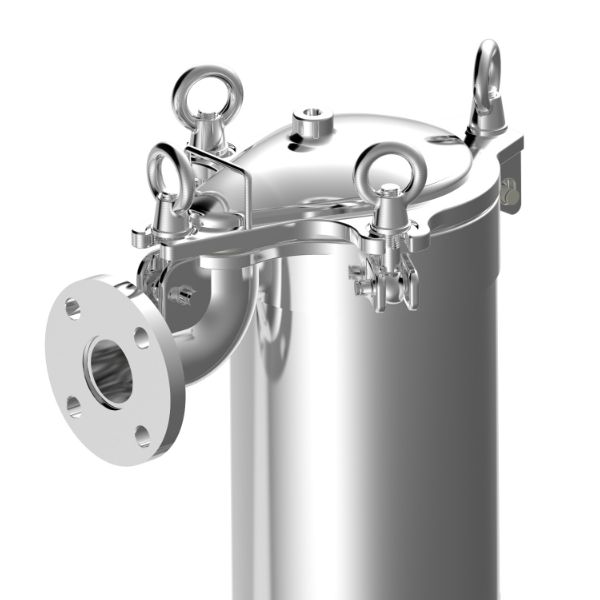

2. Swing-bolt type allows for tightly closure and easy installation without tool.
3. Well O-ring groove design improves sealing and prevents loosening.

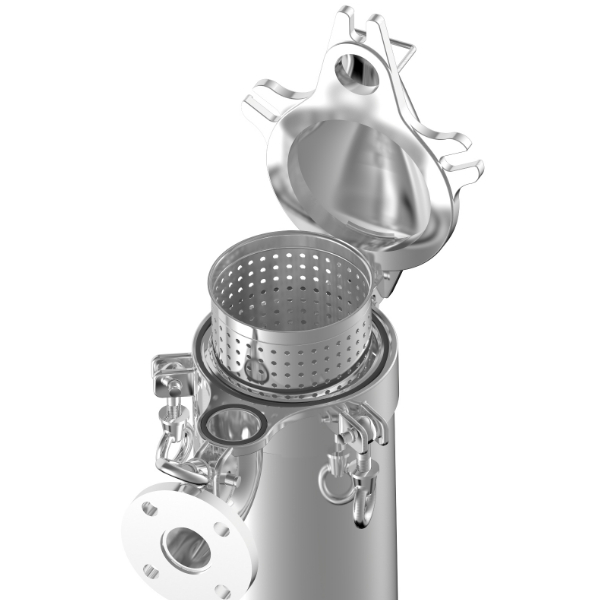

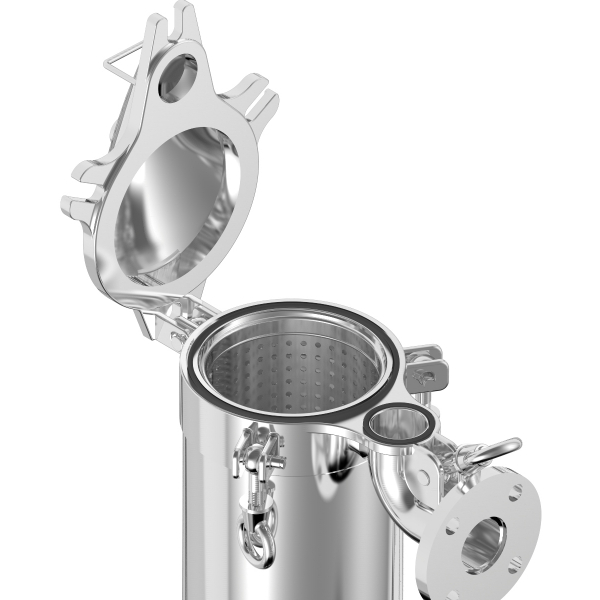

4. Opening angle of 105 degree for easy and space-saving bag filter change-outs.
5. The patented top cover design allows a faster and safer closure.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| KU | 2 | 4 | SB | 2 | 10K | E | EA |
| Model | Bag Size | Material | Connection | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
KU |
1-Bag No.1 2-Bag No.2 |
4-304 6-316 6L-316L |
SS- Side In & Side Out SB- Side In & Bottom Out |
2-2" 221-2-1/2" 3-3” |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc
|
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing S- Sand Blasting |
1. Handle
2. Vent
3. O-Ring
4. O-Ring
5. Top cover
6. Shell flange
7. Eye bolt
8. Inlet
9. Shell
10. Basket
11. Outlet
12. Support leg
| Model | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | G m/m | M³/Hr | GPM |
| KU 1 | 2"~3" | 1/2" | Ø216 | 555 | 390 | 270 | 515 | Ø306 | Ø12 | 20 | 88 |
| KU 2 | 2"~3" | 1/2" | Ø216 | 905 | 740 | 270 | 515 | Ø306 | Ø12 | 45 | 198 |
