KT

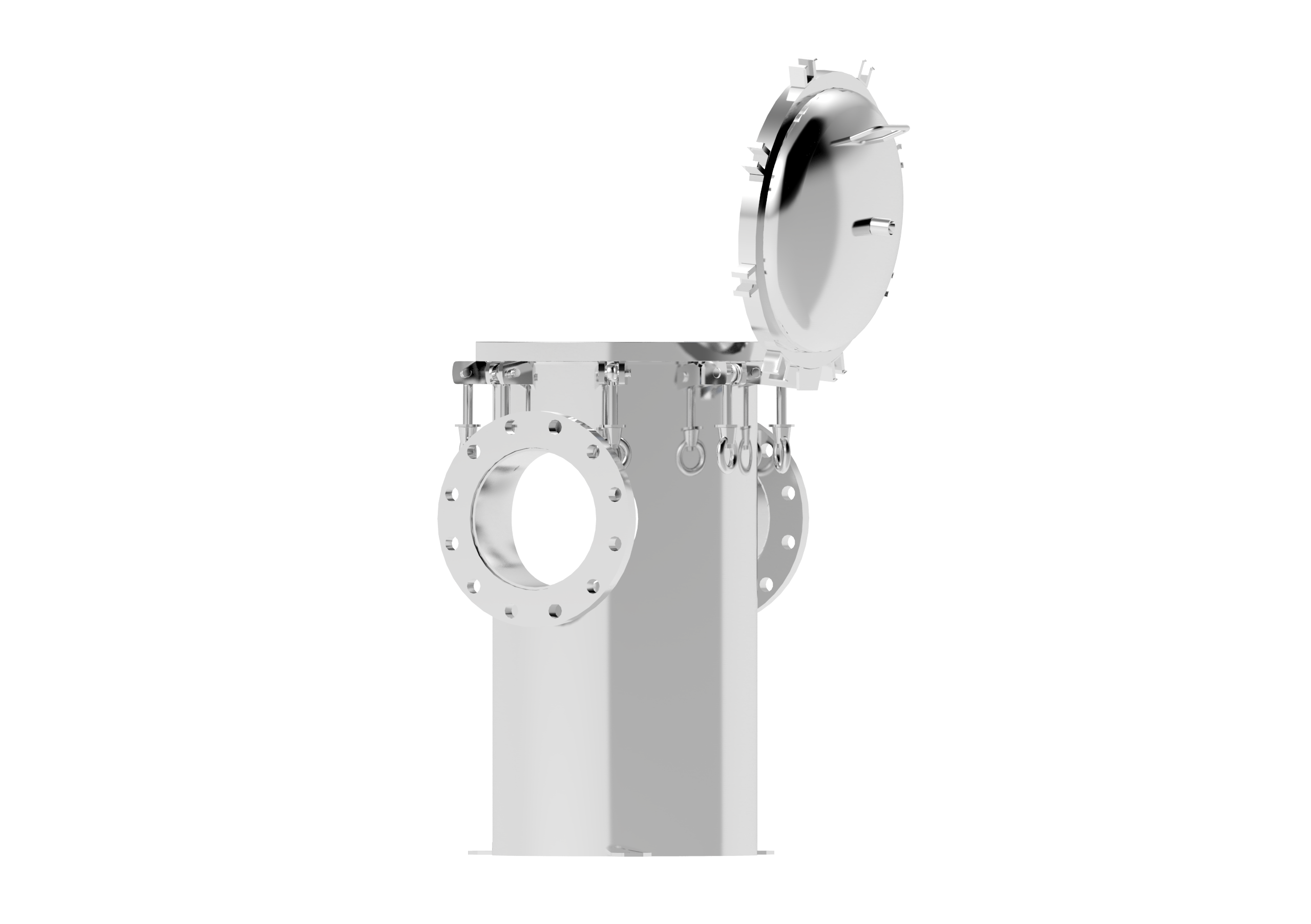

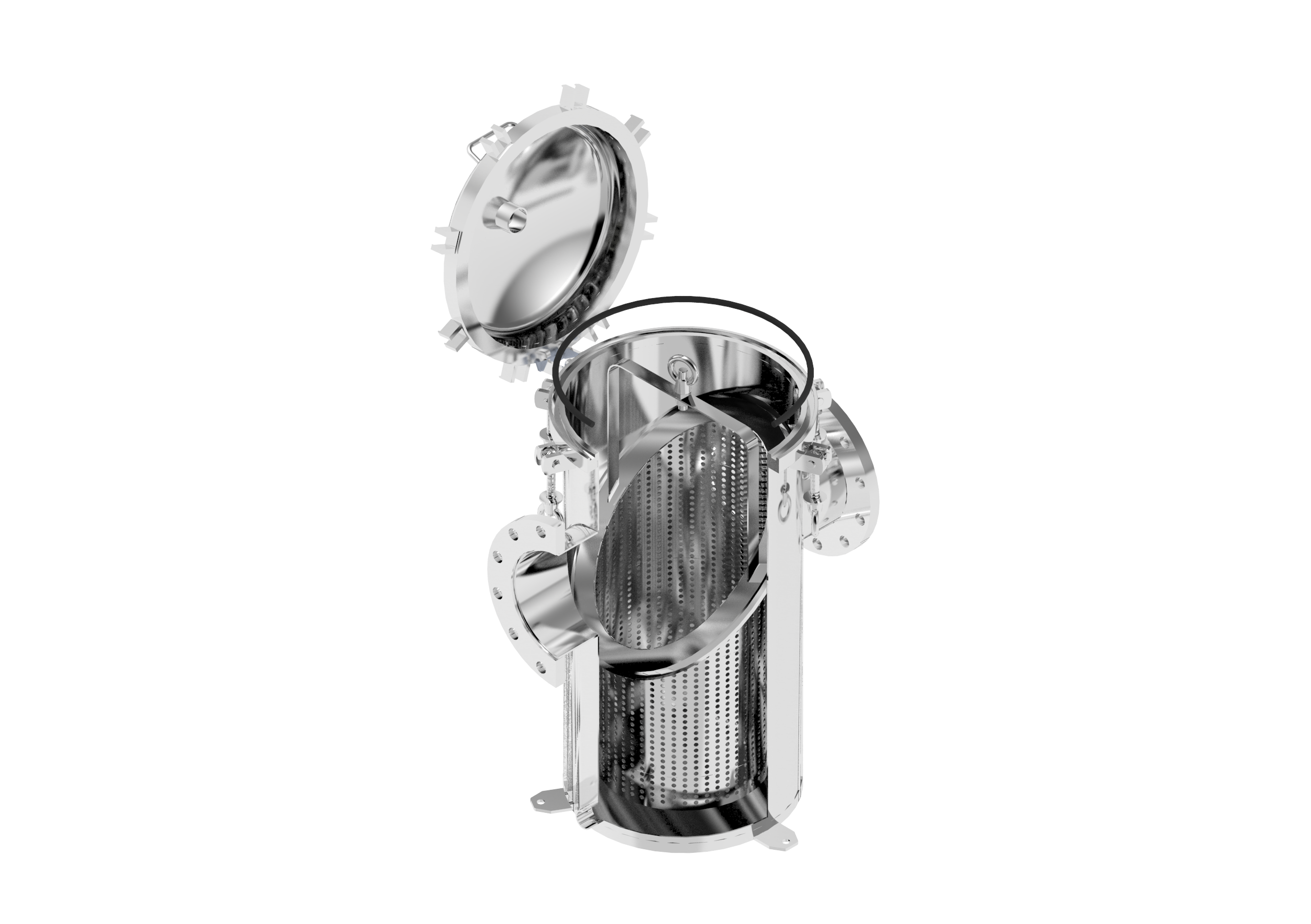

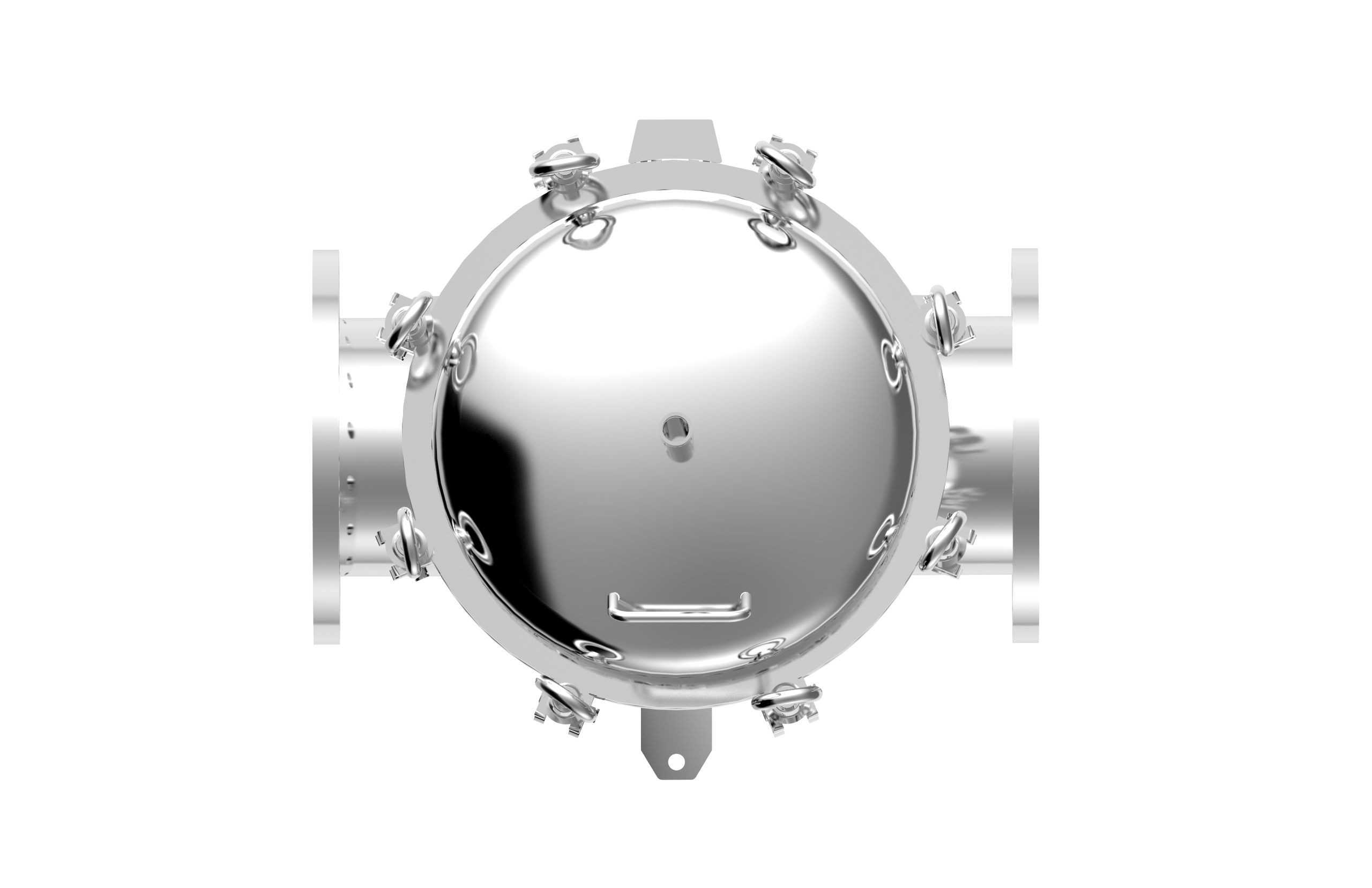

Basket Filter Bag Housing

Design P.: 150 PSI

Design T.: 100°C

Max Operating P.: 150 PSI

Operating T.: 75°C

Feature

1.Swing-bolt type allows for tightly clousure and easy installation without tool.
2.Well O-ring groove design impoves sealing and prevents loosening
3. The Patented top cover design allows a faster and safer closure.

Applications

Chemicals
Petrochemical
Beverage Industry
Liquor manufacture
Food industry
Electroplating Industry
High temperature manufacturing processes
RO Pre-filtration process
Water filtration
Pharmaceutical
Experiment Process
Gas Filter
Sewage treament
Electronic Industry

Purchase Code
KT 7 4 10 2 10K E EA
Model Basket Size Material Wire Mesh Connection Size Connection Type O-ring Outside & Inside Finishes

KT

7-Ø180
9-Ø232
12-Ø306
16-Ø406
20-Ø508

4-304
6-316
6L-316L

10-100 mesh
15-150 mesh
20-200 mesh
25-250 mesh
30-300 mesh

2-2"
221-2-1/2"
3-3"
4-4"
5-5"
6-6"
8-8"
10-10"
12-12"

150P-ANSI
10K-JIS
PN10-DIN

E-EPDM
N-NBR
V-VITON
S-Silicone
TS-Teflon+Silicone

A-ACID Pickling
E-Electropolishing
P-Polishing
S-Sand Blasting

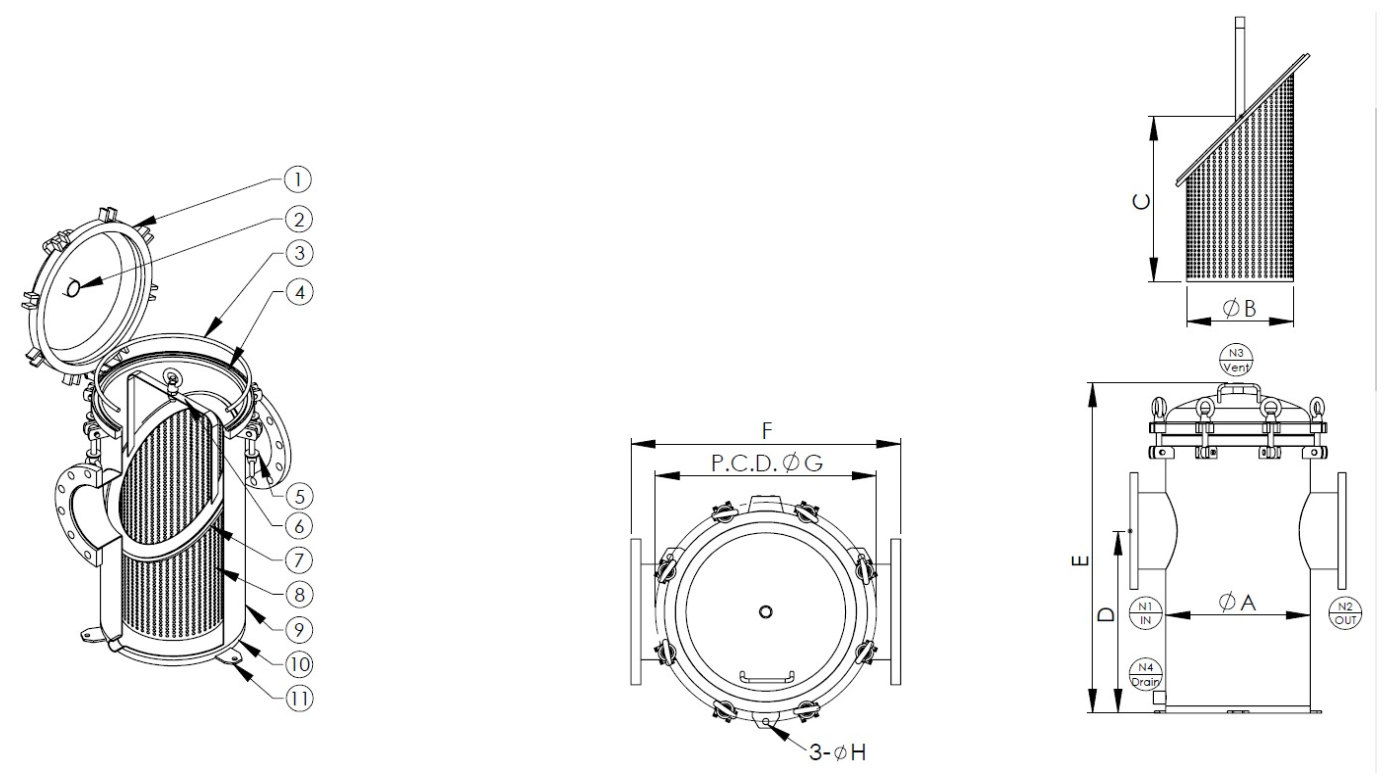

Drawing

1. Top cover

2. Vent

3. O-ring

4. Shell flange

5. Eye bolt

6. Basket handle

7. Basket plate

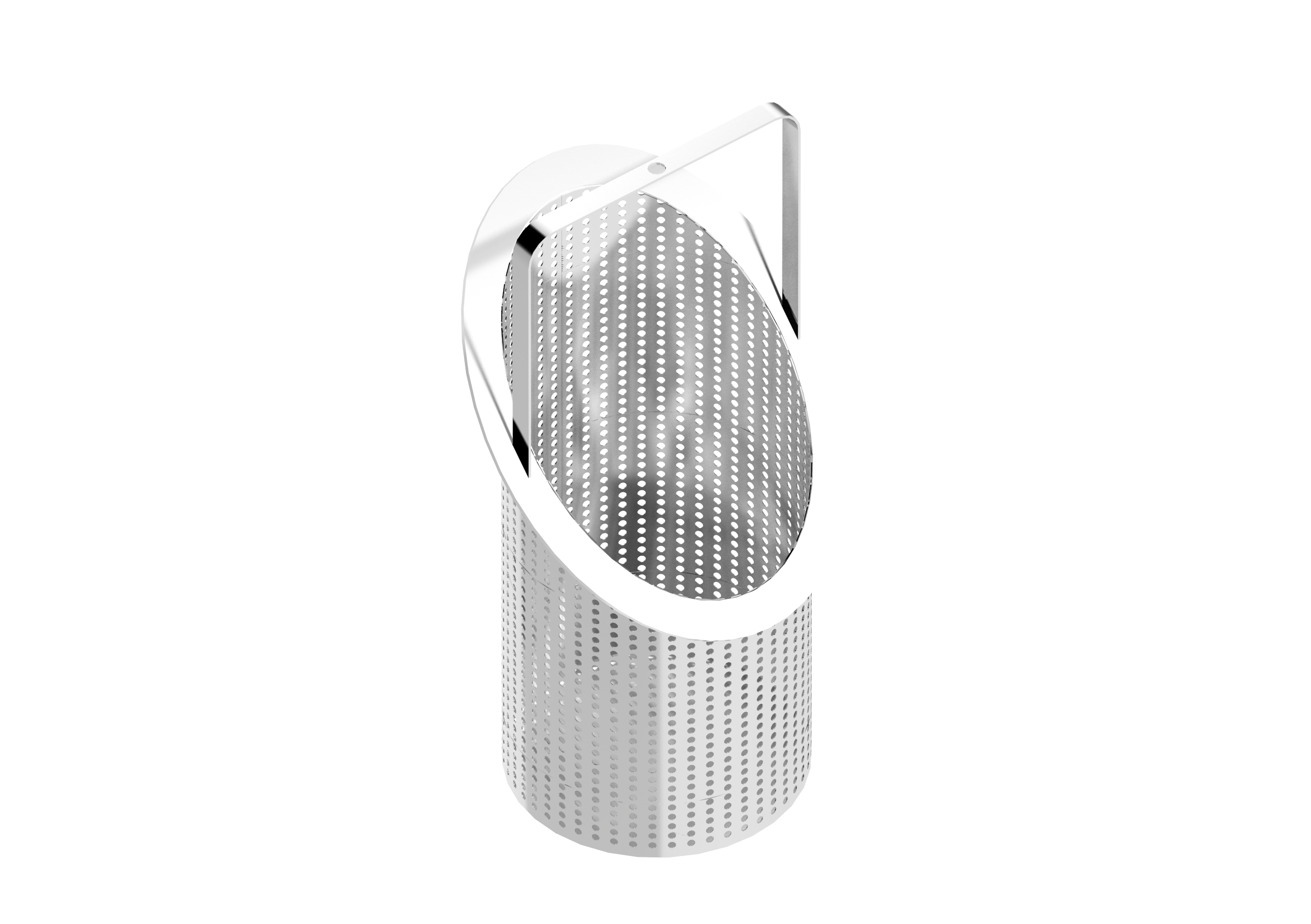

8. Basket

9. Shell

10. Base

11. Leg base plate

Specification
Model N1/N2 N3 A m/m B m/m C m/m D m/m E m/m F m/m G m/m H m/m
KT7 2"~3" 1/4" Ø180 Ø120 200 227 418 300 Ø226 Ø9
KT9 2"~5" 1/4" Ø232 Ø160 320 348 595 352 Ø282 Ø9
KT12 2"~6" 1/2" Ø306 Ø230 365 407 768 506 Ø356  Ø9
KT16 2"~8" 1/2" Ø406 Ø300 465 511 935 606 Ø496  Ø14
KT20 2"~12" 1/2" Ø508 Ø370 720 766  1309 748 Ø598  Ø14
