1. Available with 2~12 filter bags provide high filtration efficiency.

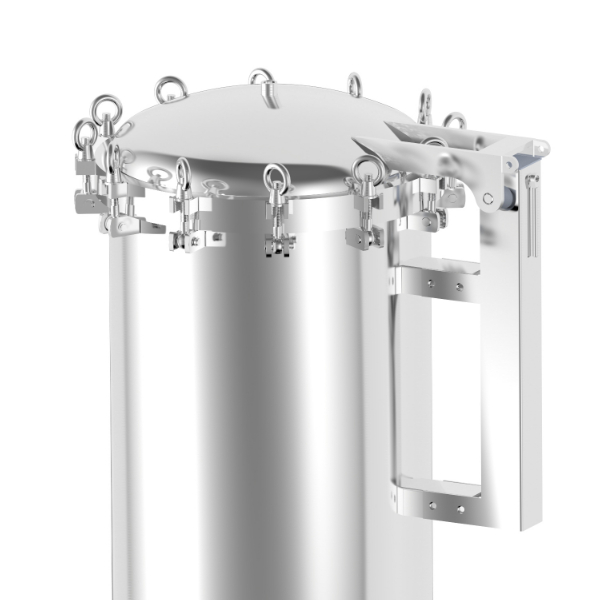

2. Swing-bolt type allows for tightly closure and easy installation without tool.
3. Well O-ring groove design improves sealing and prevents loosening.

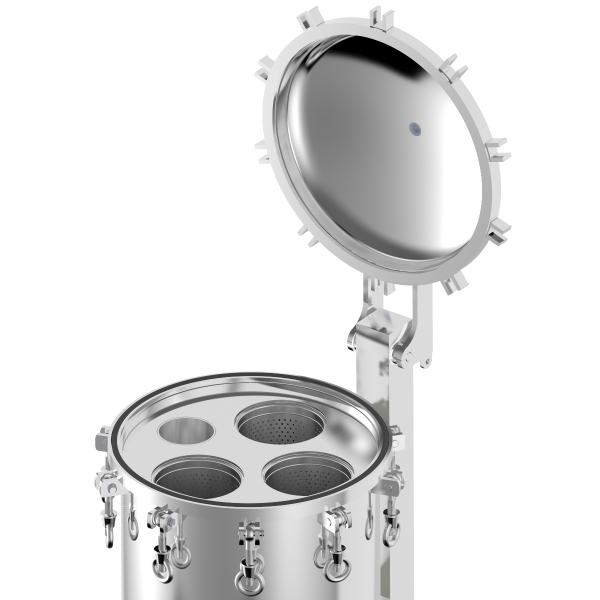

4. Spring lid type cover design contributes to easy and safe filter bag change-outs.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| KR | 2 | 2 | 4 | BB | 3 | 10K | E | EA |
| Model | No. of Filter Bag | Bag Size | Material | Connection | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
KR |
2-12 |
1-Bag No.1 2-Bag No.2 |
4-304 6-316 6L-316L |
SS- Side In & Side Out SB- Side In & Bottom Out BB- Bottom In & Bottom Out |
2-2" 221-2-1/2" 3-3'' 4-4'' 5-5'' 6-6'' 8-8'' 10-10'' 12-12'' |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing S- Sand Blasting |

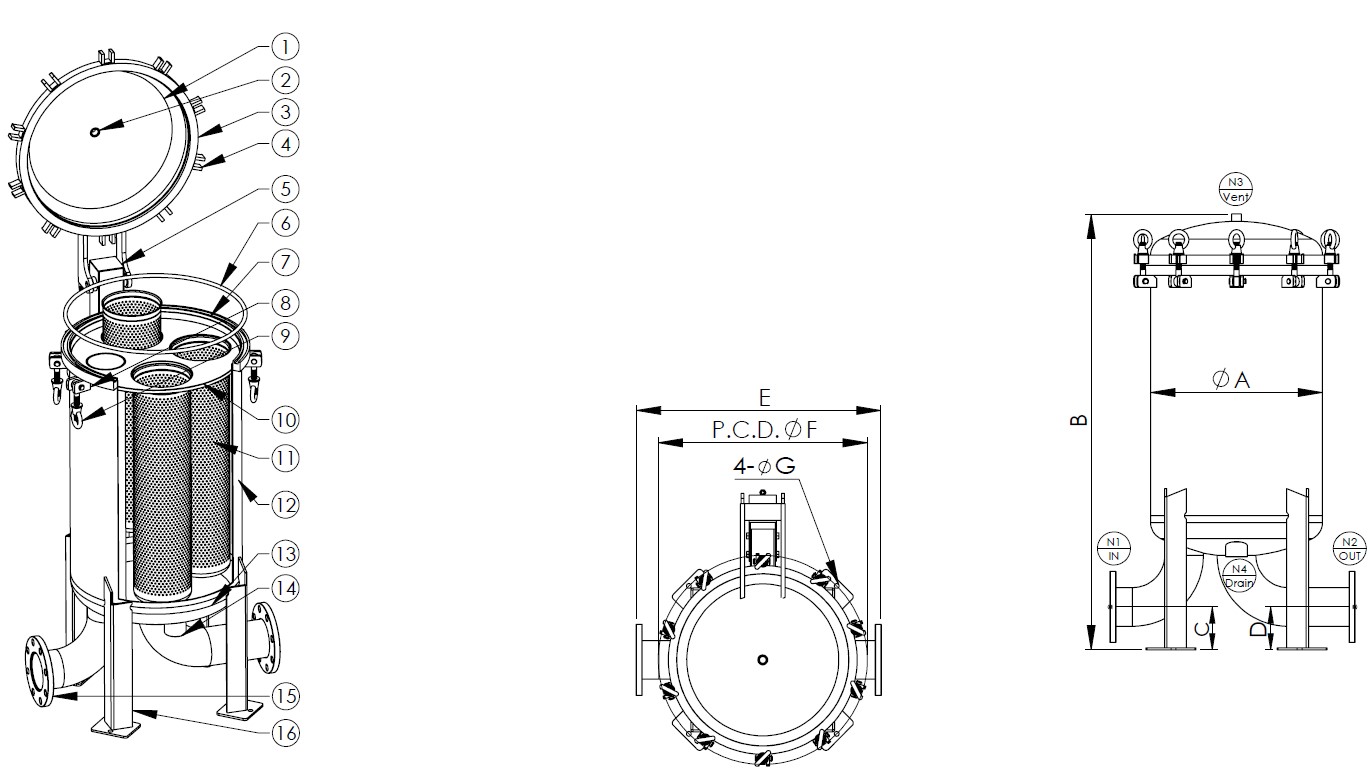

1. Top cover
2. Vent
3. Top cover flange
4. Eye nut socket
5. Raise cover units
6. O-ring
7. Shell flange
8. Eye bolt socket
9. Eye bolt
10. Filter bag plate
11. Basket
12. Shell
13. Bottom cover
14. Drain
15. Inlet / Outlet
16. Support leg
| Model | Qty of Bags |
N1/N2 |
N3 | N4 | B m/m | C m/m | D m/m | E m/m | F (PCD) m/m | G m/m | M³/Hr |
| KR2 | 2 | 3" | 1/2" | 2" | 1202 | 108 | 108 | 584 | Ø516 | Ø14 | 90 |
| KR2 | 2 | 4" | 1/2" | 2" | 1258 | 127 | 127 | 660 | Ø516 | Ø14 | 90 |
| KR3 | 3 | 3" | 1/2" | 2" | 1241 | 108 | 108 | 686 | Ø618 | Ø14 | 135 |
| KR3 | 3 | 4" | 1/2" | 2" | 1297 | 127 | 127 | 724 | Ø618 | Ø14 | 135 |
| KR4 | 4 | 3" | 1/2" | 2" | 1263 | 108 | 108 | 698 | Ø704 | Ø18 | 180 |
| KR4 | 4 | 4" | 1/2" | 2" | 1319 | 127 | 127 | 737 | Ø704 | Ø18 | 180 |
| KR4 | 4 | 6" | 1/2" | 2" | 1443 | 152 | 152 | 876 | Ø744 | Ø18 | 180 |
| KR5 | 5 | 3" | 1/2" | 2" | 1263 | 108 | 108 | 698 | Ø704 | Ø18 | 225 |
| KR5 | 5 | 4" | 1/2" | 2" | 1319 | 127 | 127 | 737 | Ø704 | Ø18 | 225 |
| KR5 | 5 | 6" | 1/2" | 2" | 1443 | 152 | 152 | 876 | Ø744 | Ø18 | 225 |
| KR6 | 6 | 3" | 1/2" | 2" | 1289 | 108 | 108 | 724 | Ø744 | Ø18 | 270 |
| KR6 | 6 | 4" | 1/2" | 2" | 1345 | 127 | 127 | 763 | Ø744 | Ø18 | 270 |
| KR6 | 6 | 6" | 1/2" | 2" | 1443 | 152 | 152 | 876 | Ø744 | Ø18 | 270 |
| KR7 | 7 | 3" | 1/2" | 2" | 1353 | 108 | 108 | 813 | Ø962 | Ø19 | 315 |
| KR7 | 7 | 4" | 1/2" | 2" | 1409 | 127 | 127 | 864 | Ø962 | Ø19 | 315 |
| KR7 | 7 | 6" | 1/2" | 2" | 1508 | 152 | 152 | 927 | Ø962 | Ø19 | 315 |
| KR7 | 7 | 8" | 1/2" | 2" | 1614 | 184 | 184 | 1047 | Ø962 | Ø19 | 315 |
| KR8 | 8 | 4" | 1/2" | 2" | 1409 | 127 | 127 | 864 | Ø962 | Ø19 | 360 |
| KR8 | 8 | 6" | 1/2" | 2" | 1508 | 152 | 152 | 927 | Ø962 | Ø19 | 360 |
| KR8 | 8 | 8" | 1/2" | 2" | 1614 | 184 | 184 | 1047 | Ø962 | Ø19 | 360 |
