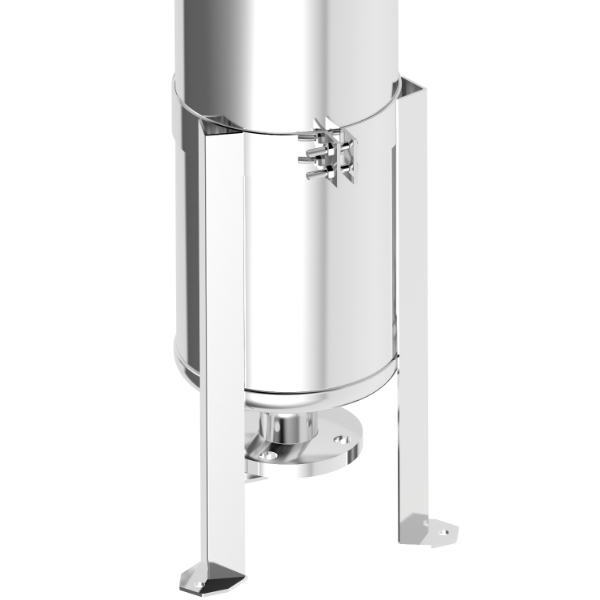

1. Single bag filter with adjustable support leg for simplified installation.
2. SUS304 clamp improves sealing and reduces product loss.

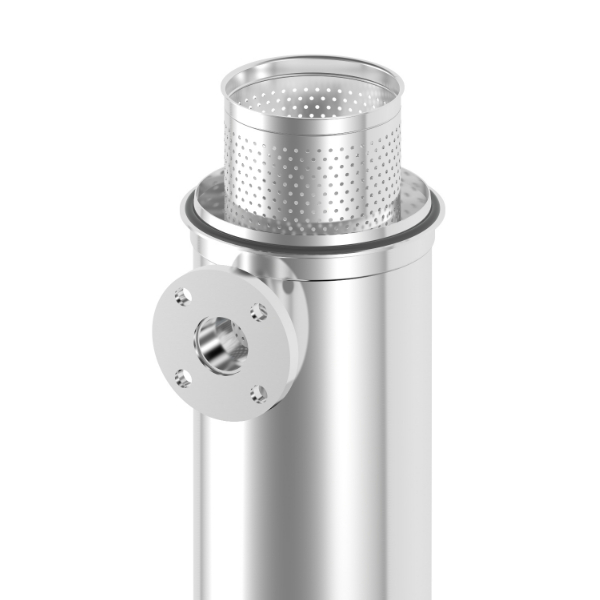

3. Well O-ring groove design improves sealing and prevents loosening.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| KL | 2 | 4 | SB | 2 | 10K | E | EA |
| Model | Bag Size | Material | Connection | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
KL |
1-Bag No.1 2-Bag No.2 3-Bag No.3 4-Bag No.4 |
4-304 6-316 6L-316L |
SS- Side In & Side Out SB- Side In & Bottom Out |
21-1/2" 43-3/4” 1-1" 121-1-1/2" 2-2" 221-2-1/2" 3-3”
|
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing |

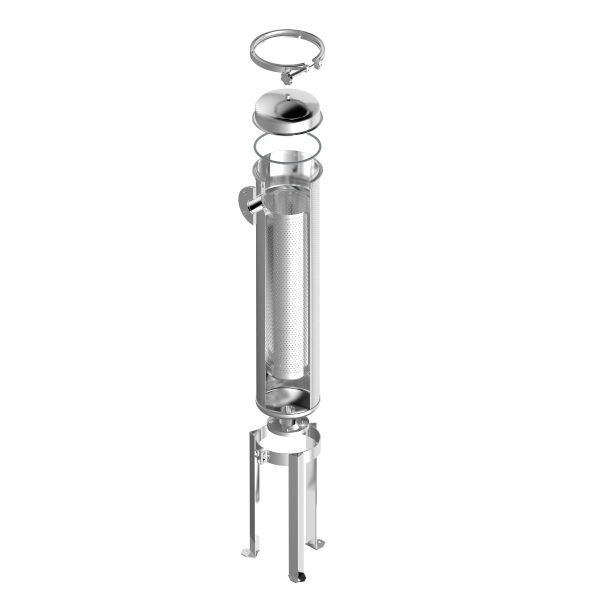

1. Clamp
2. Vent
3. Top cover
4. O-ring
5. Shell Flange
6. Filter bag plate
7. Inlet
8. Shell
9. Basket
10. Bottom cover
11. Outlet
12. Support Leg
| Model | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | G m/m | M³/Hr | GPM |
| KL1 | 1/2"~3" | 1/4" | Ø232 | 740 | 550 | 176 | 515 | Ø323 | Ø12 | 20 | 88 |
| KL2 | 1/2"~3" | 1/4" | Ø232 | 1195 | 1005 | 176 | 515 | Ø323 | Ø12 | 45 | 198 |
| KL3 | 1/2"~3" | 1/4" | Ø180 | 540 | 360 | 150 | 350 | Ø252 | Ø12 | 4.5 | 20 |
| KL4 | 1/2"~3" | 1/4" | Ø180 | 675 | 495 | 150 | 350 | Ø252 | Ø12 | 9 | 40 |
