Design P.: 150 PSI
Design T.: 100°C
Max Operating P.: 150 PSI
Operating T.: 75°C
Accessory: Cartridges.

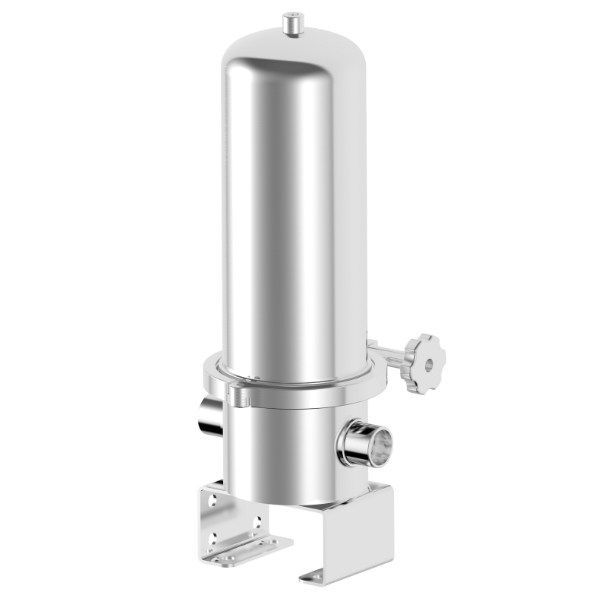

1. Sanitary type for home-use filter housing.
2. Filtration for running water.

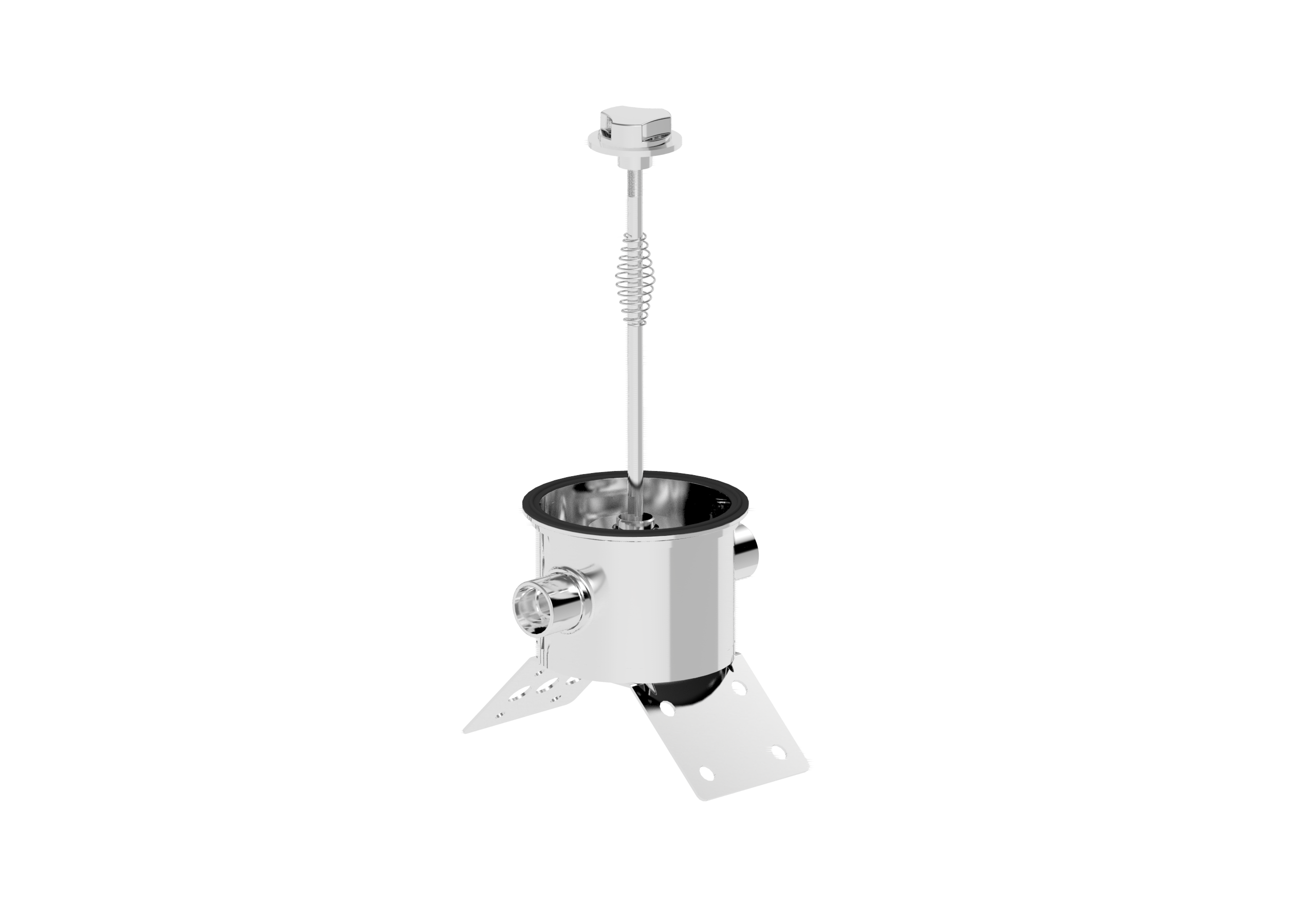

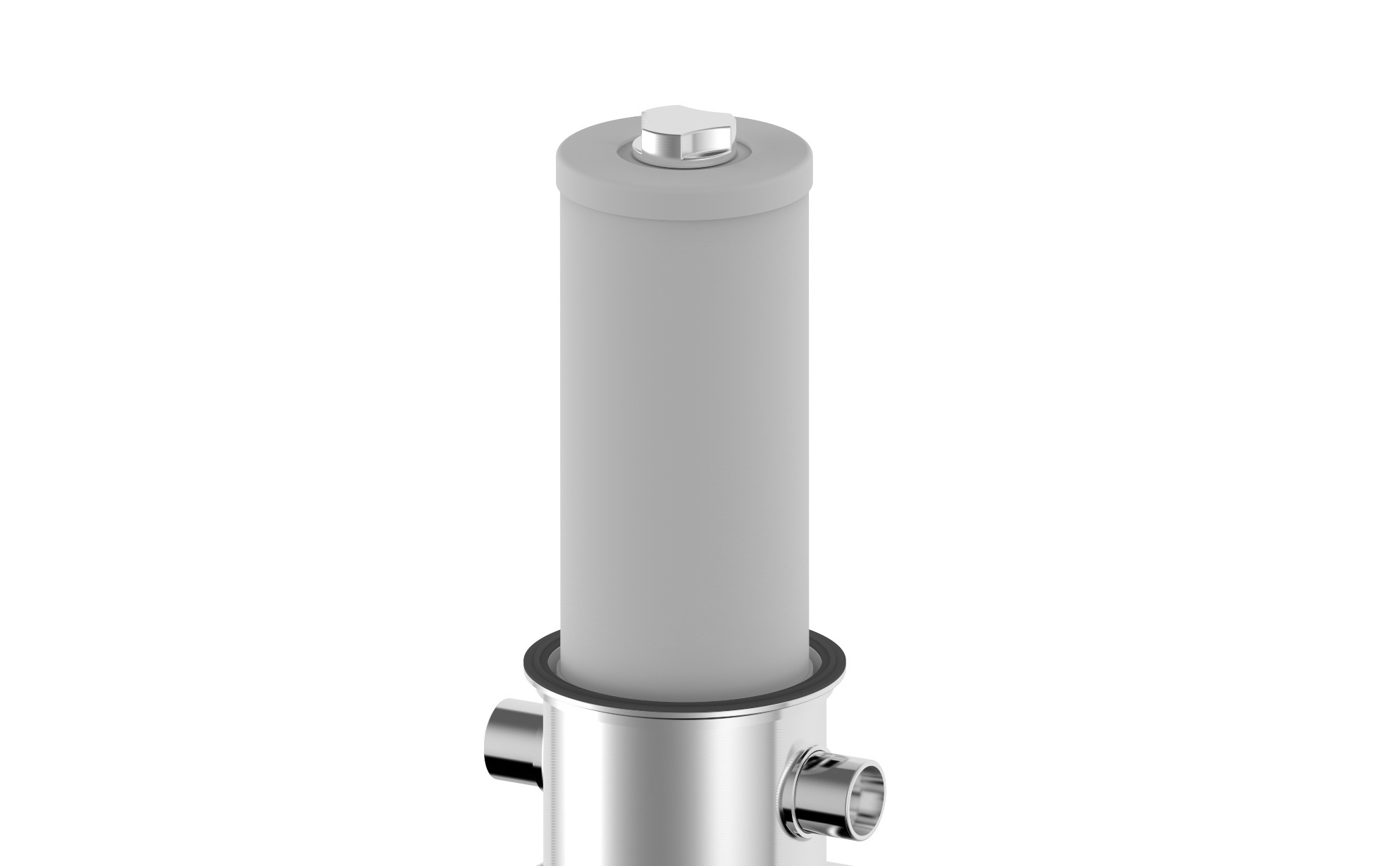

3. Tool-free install makes cartridge change-outs and housing cleaning easy and convenient.
4. Silicone gasket is approved by Japan Act Governing Food Sanitation.

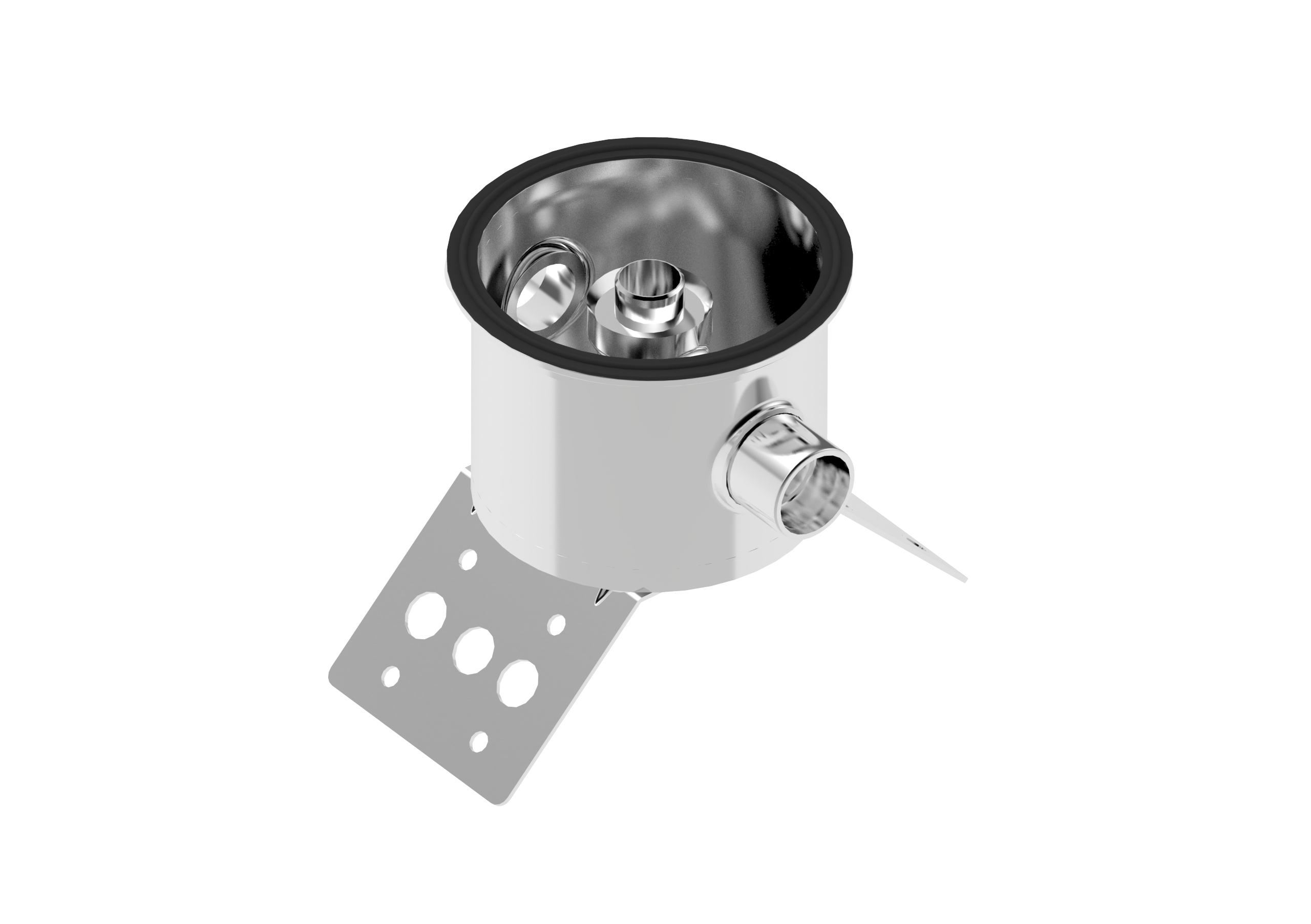

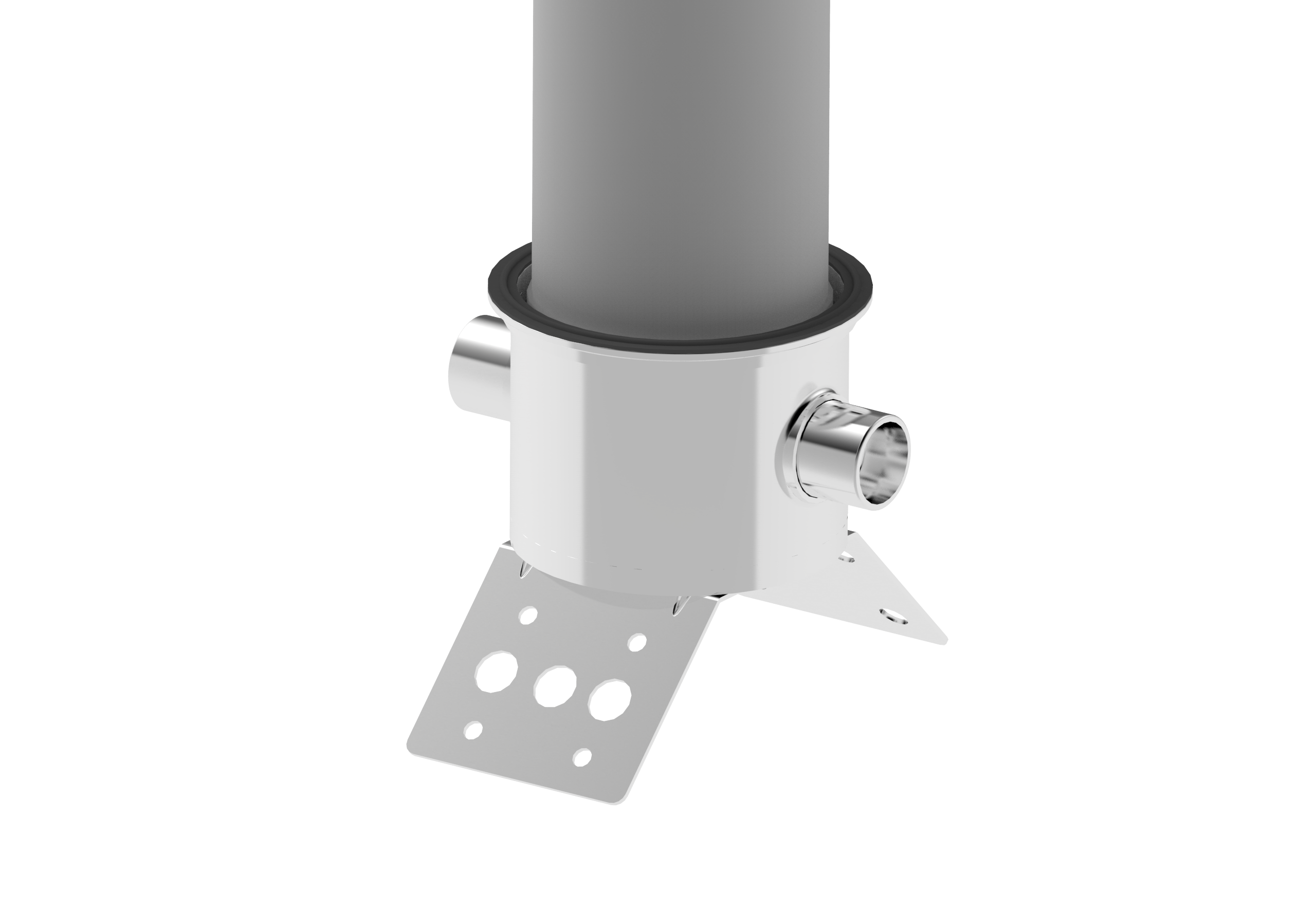

5. Wall- hanging and upright stand function in one support leg.
6. Inside & surface polishing.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| HS | 1 | 4 | F | 1 | PF | E | PP |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
HS |
1-10" 2-20" |
4-304 |
F-DOE 5-222 |
1-1" |
PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE |
A-Acid Pickling E-Electropolishing P-Polishing |

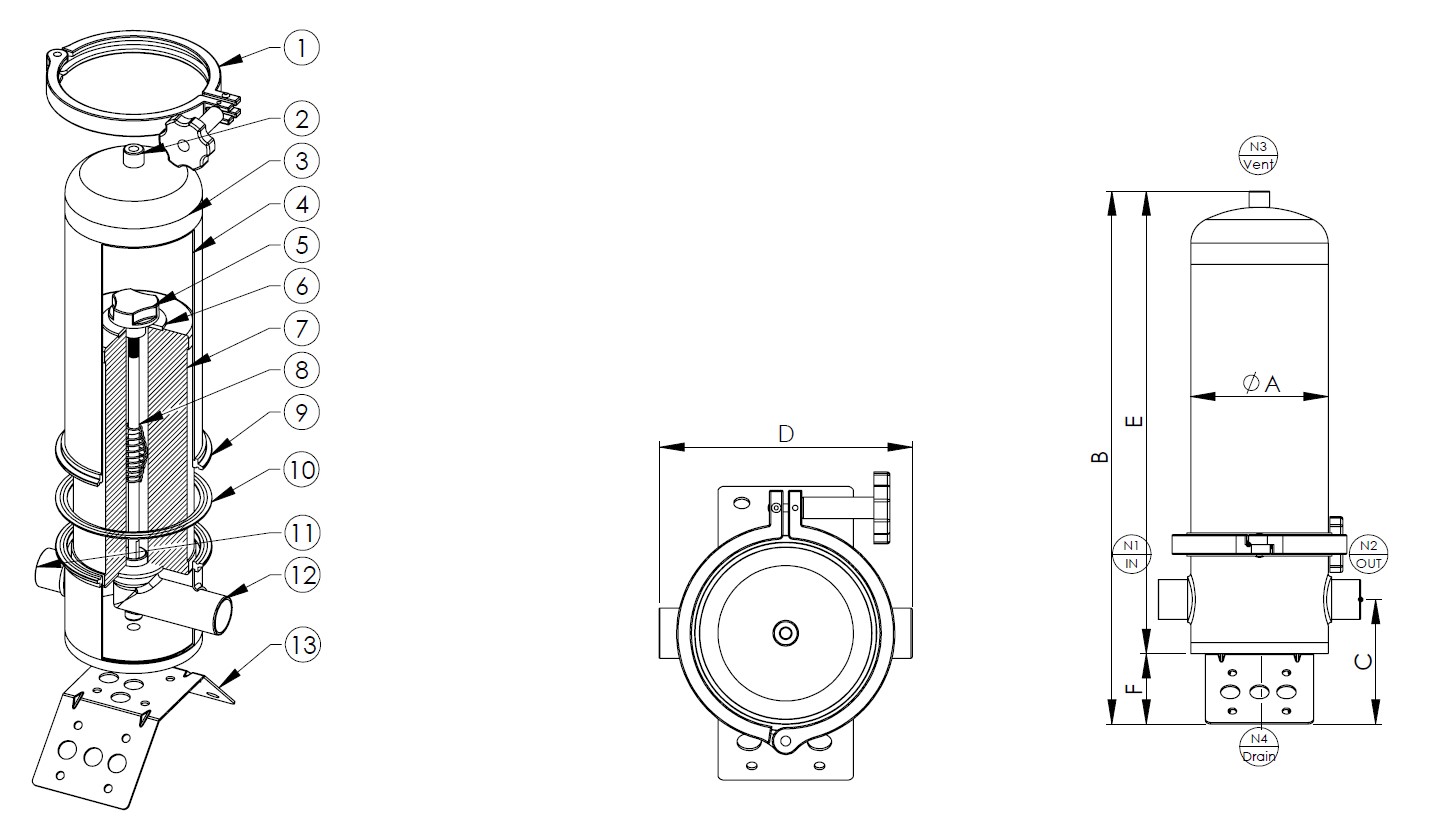

1. Clamp
2. Vent
3. Bottom cover
4. Shell
5. Nut
6. Gasket
7. Filter cartridge
8. Screw rod
9. Shell flange
10. Gasket
11. Inlet
12. Outlet
13. Mounting bracket
| Model | Length | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m |
| HS1 | 10" | 1" | 1/4" | Ø127 | 493 | 116 | 187 | 427 | 66 |
| HS2 | 20" | 1" | 1/4" | Ø127 | 743 | 116 | 187 | 677 | 66 |
