1. Easy maintenance for family use.
2. SUS301 clamp closure and heavy-duty gasket improves sealing and reduces product loss.
3. High-thickness rubber O-ring allows for easy installation and resistance of spillage.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| HA | 1 | 4 | F | 1 | PF | E | EA |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
HA |
1-10" 2-20" |
4-304 |
F-DOE 5-222 |
1-1" |
PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE |
A-Acid Pickling E-Electropolishing P-Polishing |

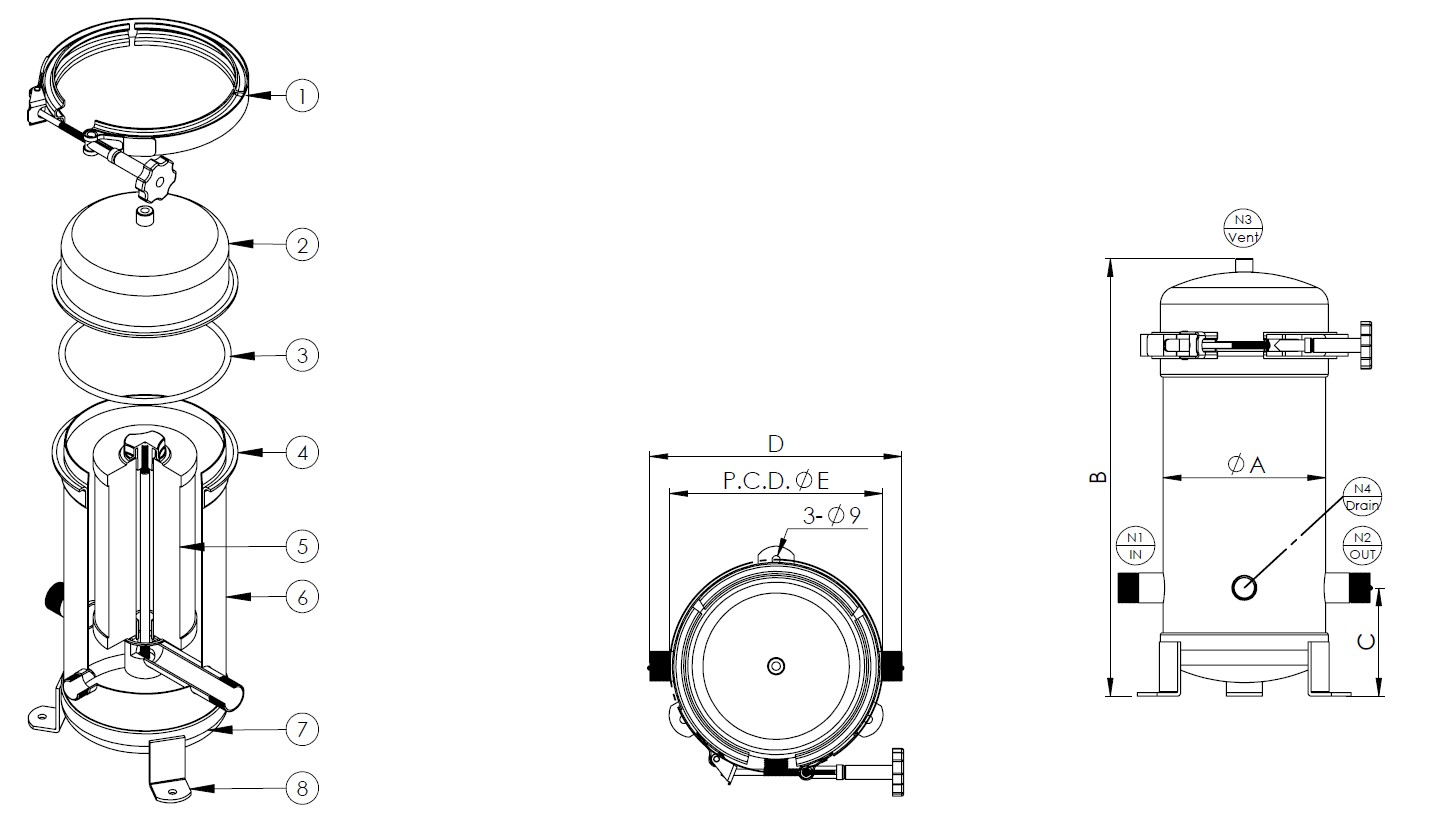

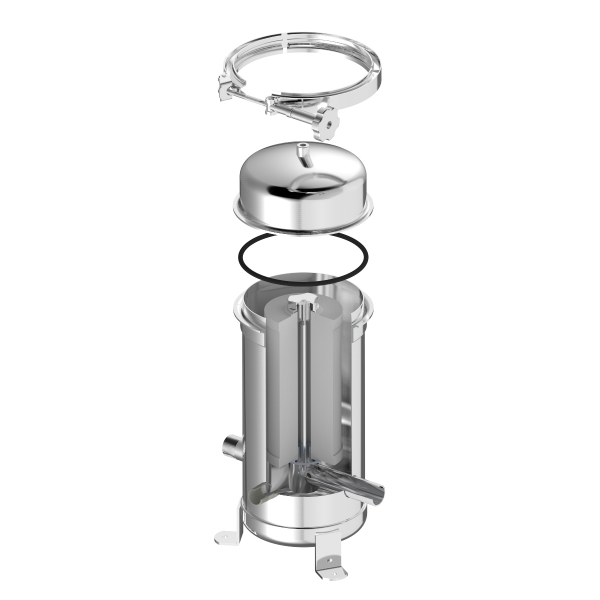

1. Clamp
2. Cover
3. O-ring
4. Shell flange
5. Filter cartridge
6. Shell
7. Bottom cover
8. Support leg
| Model | Length | N1/N2 | N3 | N4 | A m/m | B m/m | C m/m | D m/m | E(PCD) m/m |
| HA1 | 10" | 1" | 1/4" | 3/4" | Ø180 | 445 | 120 | 280 | Ø236 |
| HA2 | 20" | 1" | 1/4" | 3/4" | Ø180 | 695 | 120 | 280 | Ø236 |
