1. Excellent durability and tolerance of high pressure
2. High Flow type allows high filtration efficience.

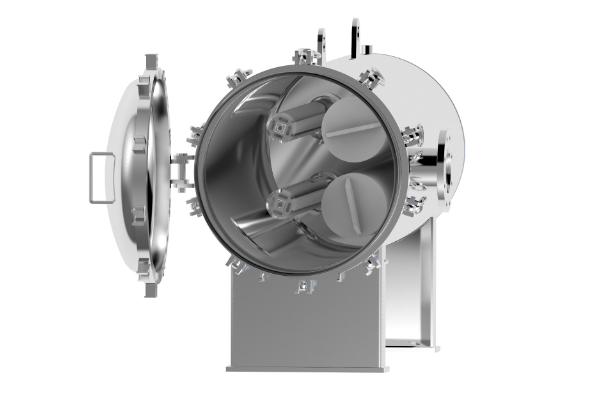

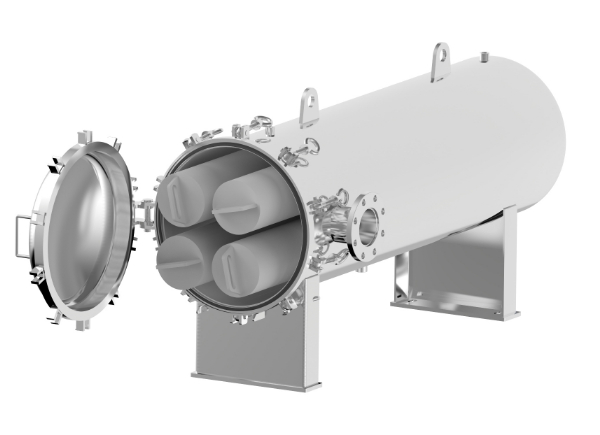

3. Horizontal housing with side-opened top cover design allows easier and safer cartridge change-outs.
4. High-thickness rubber Oring allows for easy installation and resistance of spillage.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| FM | 5 | 4 | 4 | 3H | 6 | 150P | E | EA |
| Model | No. of Rounds | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
FM |
2-19 |
4-40" 6-60" |
4-304 6-316 6L-316L |
3H-3M High Flow 37-3M 700 PM-Pall PX-Pall Max
|
4-4'' 5-5'' 6-6'' 8-8'' 10-10'' 12-12'' 14-14" 16-16" |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing S- Sand Blasting |
1. Top cover flange
2. Top cover
3. O-ring
4. Shell flange
5. Eye bolt
6. Lifting lug
7. Shell
8. Vent
9. Bottom cover
10. Inlet / Outlet
11. Drain
12. Support leg
| Model | Length | N1/N2 |
N3 |
N4/N5 |
A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | G m/m | M³/Hr |
| FM2 | 40" | 4" | 1/2" | 1" | Ø406 | 1681 | 1471 | 1120 | 450 | 303 | 250 | 190 |
| FM2 | 60" | 4" | 1/2" | 1" | Ø406 | 2191 | 1981 | 1630 | 450 | 303 | 250 | 280 |
| FM3 | 40" | 5" | 1/2" | 1" | Ø406 | 1731 | 1511 | 1170 | 450 | 303 | 250 | 258 |
| FM3 | 60" | 5" | 1/2" | 1" | Ø406 | 2241 | 2021 | 1680 | 450 | 303 | 250 | 420 |
| FM4 | 40" | 5" | 1/2" | 1" | Ø508 | 1750 | 1530 | 1170 | 500 | 354 | 300 | 380 |
| FM4 | 60" | 5" | 1/2" | 1" | Ø508 | 2260 | 2040 | 1680 | 500 | 354 | 300 | 560 |
| FM5 | 40" | 6" | 1/2" | 1" | Ø508 | 1750 | 1515 | 1170 | 500 | 354 | 300 | 475 |
| FM5 | 60" | 6" | 1/2" | 1" | Ø508 | 2260 | 2025 | 1680 | 500 | 354 | 300 | 700 |
| FM7 | 40" | 6" | 1/2" | 1" | Ø560 | 1761 | 1526 | 1170 | 550 | 380 | 350 | 665 |
| FM7 | 60" | 6" | 1/2" | 1" | Ø560 | 2271 | 2036 | 1680 | 550 | 380 | 350 | 980 |
| FM8 | 40" | 6" | 1/2" | 1" | Ø650 | 1780 | 1545 | 1170 | 600 | 425 | 400 | 760 |
| FM8 | 60" | 6" | 1/2" | 1" | Ø650 | 2290 | 2055 | 1680 | 600 | 425 | 400 | 1120 |
| FM9 | 40" | 8" | 1/2" | 1" | Ø762 | 1881 | 1606 | 1250 | 650 | 481 | 500 | 855 |
| FM9 | 60" | 8" | 1/2" | 1" | Ø762 | 2391 | 2116 | 1760 | 650 | 481 | 500 | 1260 |
| FM10 | 40" | 8" | 1/2" | 1" | Ø762 | 1881 | 1606 | 1250 | 650 | 481 | 500 | 950 |
| FM10 | 60" | 8" | 1/2" | 1" | Ø762 | 2391 | 2116 | 1760 | 650 | 481 | 500 | 1400 |
| FM12 | 40" | 8" | 1/2" | 1" | Ø762 | 1881 | 1606 | 1250 | 650 | 481 | 500 | 1140 |
| FM12 | 60" | 8" | 1/2" | 1" | Ø762 | 2391 | 2116 | 1760 | 650 | 481 | 500 | 1680 |
| FM13 | 40" | 14" | 1/2" | 1" | Ø864 | 2091 | 1691 | 1440 | 700 | 532 | 550 | 1235 |
| FM13 | 60" | 14" | 1/2" | 1" | Ø864 | 2601 | 2201 | 1950 | 700 | 532 | 550 | 1820 |
| FM15 | 40" | 16" | 1/2" | 1" | Ø864 | 2141 | 1716 | 1490 | 700 | 532 | 550 | 1425 |
| FM15 | 60" | 16" | 1/2" | 1" | Ø864 | 2651 | 2226 | 2000 | 700 | 532 | 550 | 2100 |
| FM17 | 40" | 16" | 1/2" | 1" | Ø864 | 2141 | 1716 | 1490 | 700 | 532 | 550 | 1615 |
| FM17 | 60" | 16" | 1/2" | 1" | Ø864 | 2651 | 2226 | 2000 | 700 | 532 | 550 | 2380 |
| FM19 | 40" | 16" | 1/2" | 1" | Ø900 | 2148 | 1723 | 1490 | 750 | 550 | 600 | 1805 |
| FM19 | 60" | 16" | 1/2" | 1" | Ø900 | 2658 | 2233 | 2000 | 750 | 550 | 600 | 2660 |
