1. Excellent durability and tolerance of high pressure
2. High Flow type allows high filtration efficience.

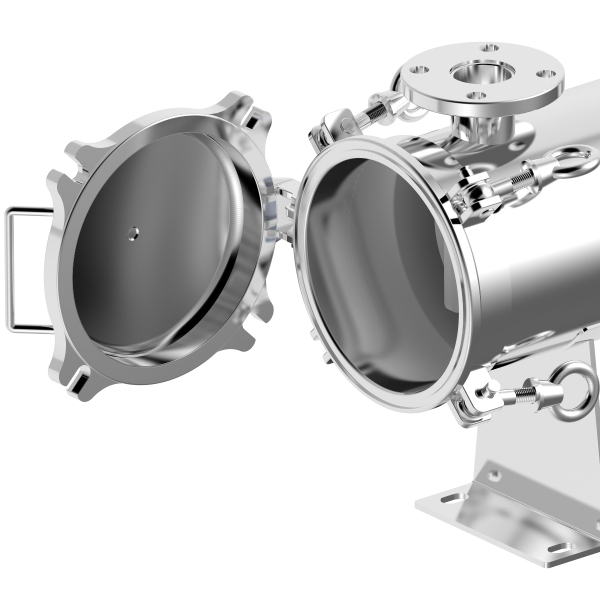

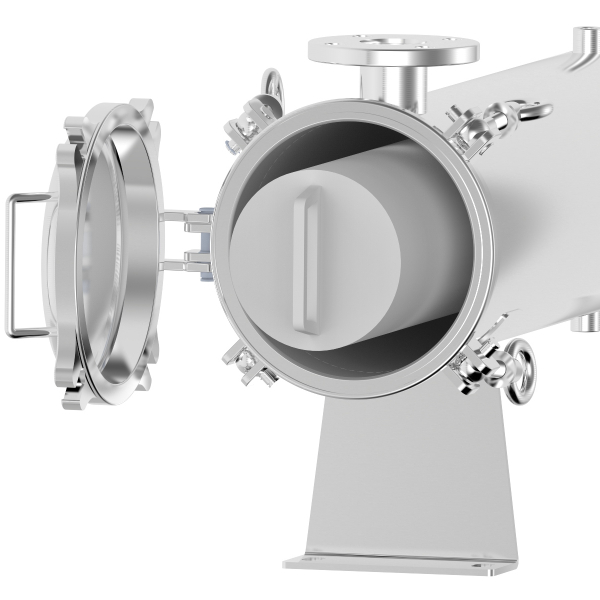

3. Horizontal housing with side-opened top cover design allows easier and safer cartridge changing-out.
4. High-thickness rubber Oring allows for easy installation and resistance of spillage.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| FA | 4 | 4 | 3H | 2 | 10K | E | EA |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside/Inside Finishes |
FA |
4-40" 6-60"
|
4-304 6-316 6L-316L
|
3H-3M High Flow 37-3M 700 PM-Pall PX-Pall Max |
21-1/2" 43-3/4" 1-1" 121-1-1/2" 2-2" 221-2-1/2" 3-3" |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A-ACID-Pickling E-Electropolishing P-Polishing S-Sand Blasting |

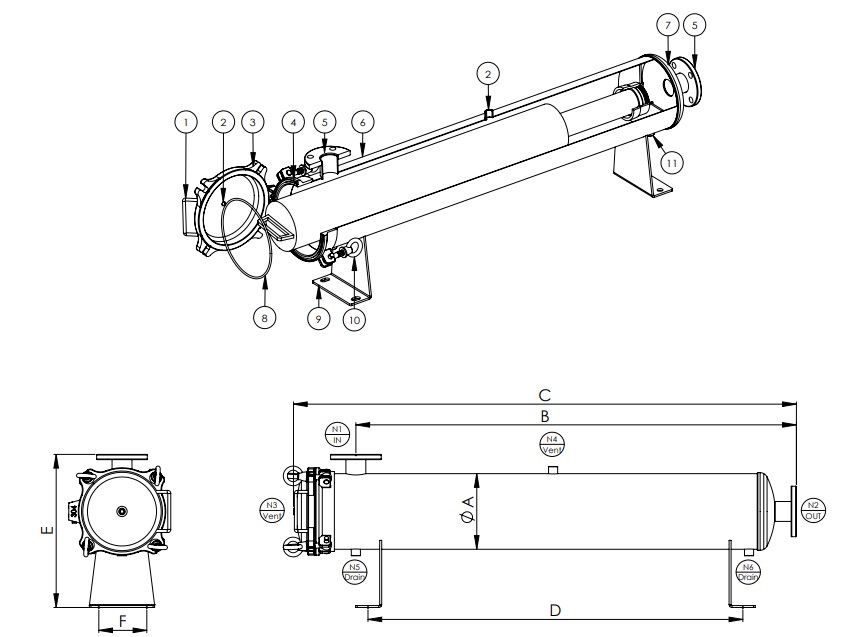

1. Handle
2. Vent
3. Top cover
4. Shell flange
5. Inlet / Outlet
6. Shell
7. Bottom cover
8. O-ring
9. Support leg
10. Eye bolt
11. Drain
| Model | Length | N1/N2 | N3 | N4/N5/N6 | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | M³/Hr |
| FA | 40" | 1/2"~3" | 1/4" | 1/2" | Ø232 | 1349 | 1540 | 1120 | 476 | 160 | 94 |
| FA | 60" | 1/2"~3" | 1/4" | 1/2" | Ø232 | 1959 | 2150 | 1730 | 476 | 160 | 140 |
